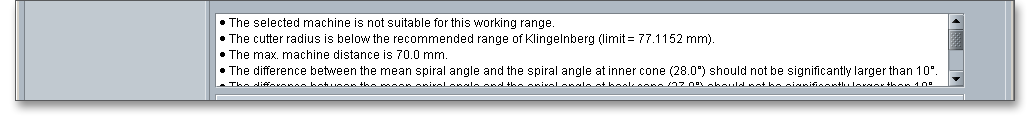

    12.8   Message Window

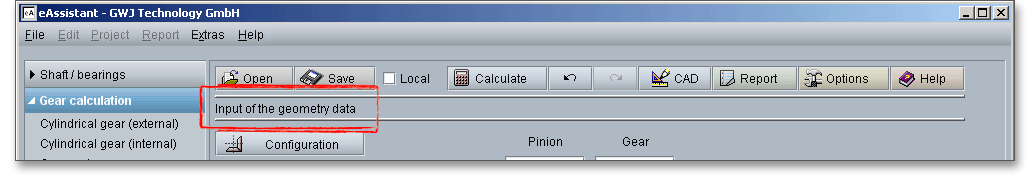

    12.9   Quick Info: Tooltip
    12.10   Calculation Results

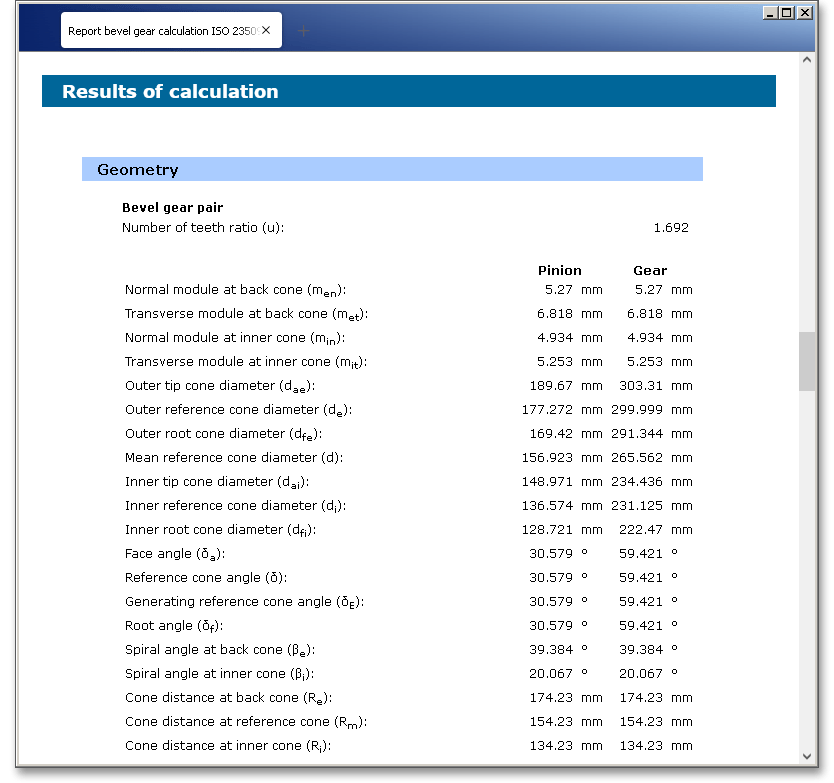

    12.11   Documentation: Calculation Report

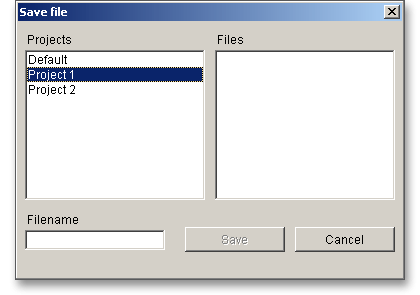

    12.12   How to Save the Calculation

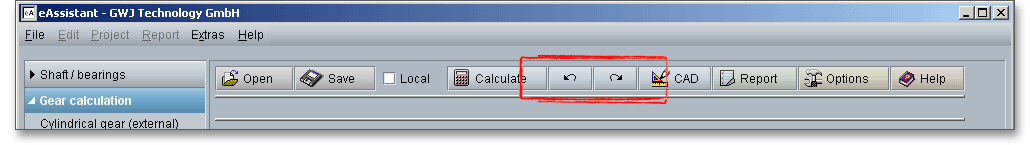

    12.13   The Button ‘Redo’ and ‘Undo’

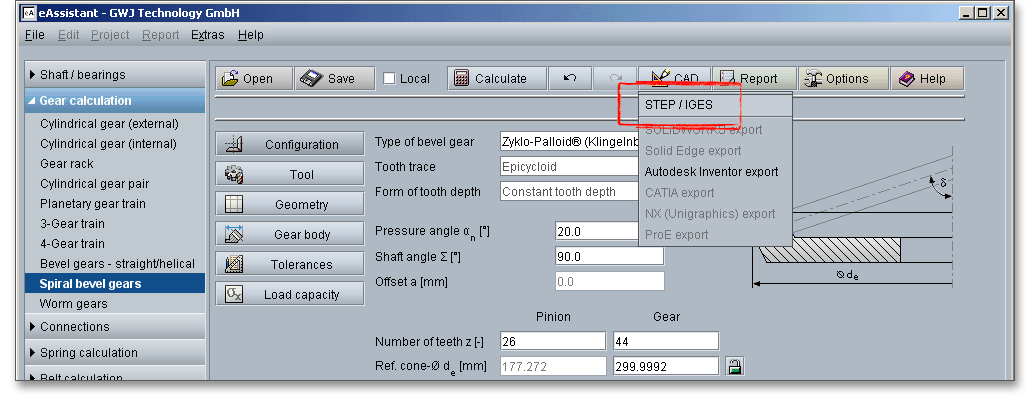

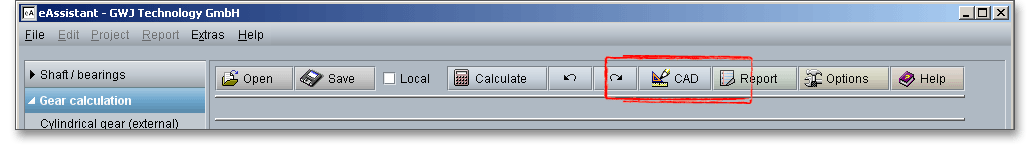

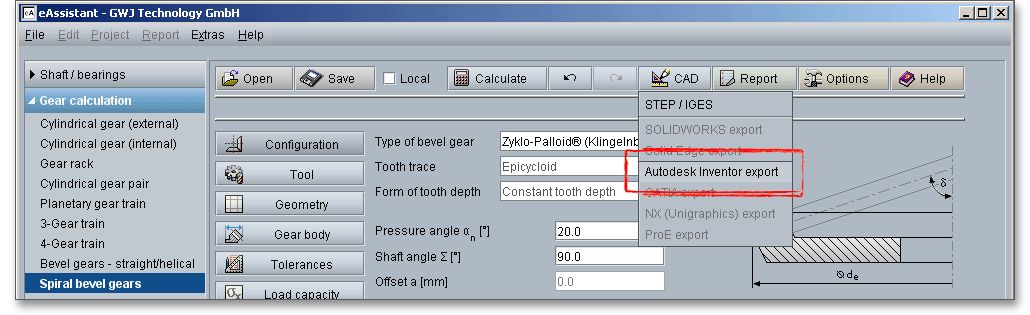

    12.14   The Button ‘CAD’

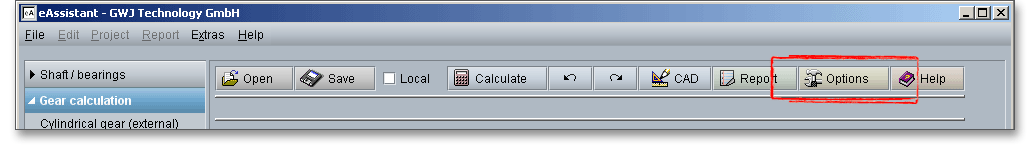

    12.15   The Button ‘Options’

12.1 Start Calculation Module

Please login with your username and your password. To start the calculation module for straight or helical bevel gears, please click the menu item ‘Gear calculation’ on the left side and then select ‘Spiral bevel gears’.

PIC

Figure 12.1: General overview

12.2 Basic Configuration of Bevel Gear Pair

The general calculation of bevel gears is based on the ISO 23509 standard. The bevel gear tooth system is clearly determined by the reference cone angle \(\delta \) and a basic crown gear. The crown gear is a bevel gear where the reference cone angle is \(90^{\circ }\). This causes the reference cone of the bevel gear to merge into the crown gear reference plane perpendicular to the gear axis. The basic crown gear is an important factor for the basic rack profile. The relation of a crown gear and bevel gear is similar to that of a rack and a spur gear.

PIC

Figure 12.2: Bevel gear with crown gear

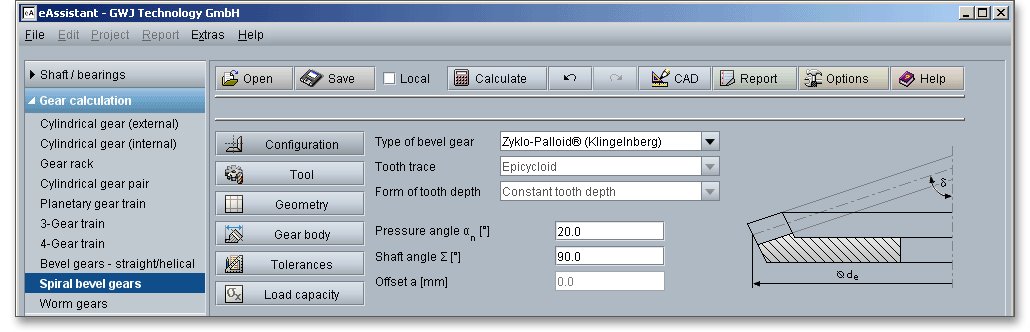

The configuration part of the calculation module allows the input of the pressure angle, the number of teeth and a desired reference cone diameter on the back cone of the gear. A recommended range of values for the facewidth, normal module and spiral angle is displayed to the right of the corresponding input field.

Please Note: All results will be calculated during every input and will be displayed in the result panel. A recalculation occurs after every data input. Any changes that are made to the user interface take effect immediately. In case a minimum safety is not fulfilled, the result will be marked red. Press the Enter key or move to the next input field to complete the input. Alternatively, use the Tab key to jump from field to field or click the ‘Calculate’ button after every input. Your entries will be also confirmed and the calculation results will displayed automatically.

12.2.1 Types of Bevel Gears

Several different kinds of bevel gears are in common use. Depending upon the tooth depth along the facewidth (constant or tapering tooth depth) or the curvature of tooth traces, the bevel gears are categorized into the following types - straight, helical and spiral bevel gears.

PIC

Figure 12.3: Curvature of tooth traces

There are two different procedures for manufacturing Klingelnberg spiral bevel gears. Hence, two main gearing types are distinguished - the Palloid® and Zyklo-Palloid® system. The eAssistant module allows a fast and easy calculation of Klingelnberg Zyklo-Palloid® spiral bevel gears. Variable hobbing heads are used for the Palloid® system and two-part cutting heads for the Zyklo-Palloid® system. General advantages of Zyklo-Palloid® gears are, for example, an exceptional displacement capability, a high degree of tooth accuracy, a high load capacity, a good contact pattern as well as a low noise level.

12.2.2 Tooth Trace

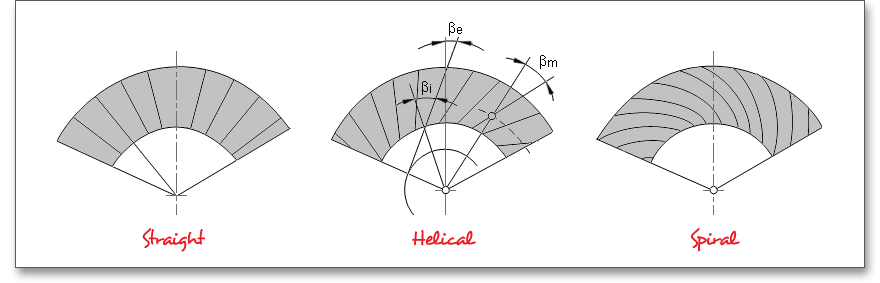

The form of the tooth trace determines the disposition of the tooth flank. The following tooth traces can be distinguished - circular arc, involute and extended epicycloid.

PIC

Figure 12.4: Tooth traces

The tooth curvature of the Zyklo-Palloid® spiral bevel gear along the facewidth is that of an extended epicycloid. The epicycloid gives the curved shape of the teeth. Because of this contour, more teeth are in contact at the same time and a perfectly smooth operation is provided. Spiral bevel gears transmit the motion more quietly and smoothly than straight bevel gears. Zyklo-Palloid® bevel gears, originally developed for smaller gear sizes, have a constant tooth depth along the entire facewidth. When the bevel gear tooth has a constant tooth depth along the facewidth, then the face and root angle are identical and both have the same value for the reference cone angle, disregarding the angle modification. In this case, the tooth root line is parallel to an element of the face cone. If the tooth tips of the toe become smaller and the through-hardening starts at the tooth tip, then tooth tip chamfering is carried out.

Please Note: The calculation module checks if a tooth tip chamfering is necessary and if so, the chamfering is carried out automatically to avoid through-hardening. In addition, the tooth tip chamfering can be modified manually at any time.

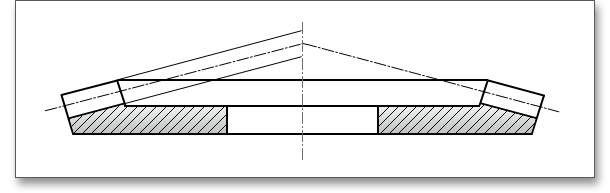

12.2.3 Constant Tooth Depth

The tooth depth remains constant along the facewidth and the face and root angle are identical and both have the same value for the reference cone angle, disregarding the angle modification. The tooth root line is parallel to an element of the face cone.

PIC

Figure 12.5: Constant tooth depth

12.2.4 Pressure Angle

Spiral bevel gears are commonly made with \(17,5^{\circ }\) and \(20^{\circ }\) pressure angles. The most commonly used design pressure angle for bevel gears is \(20^{\circ }\). The default startup setting for the pressure angle is set to \(20^{\circ }\). Other angles may be used, but \(45^{\circ }\) is the maximum value that you can enter into the input field.

PIC

Figure 12.6: Pressure angle, shaft angle, offset

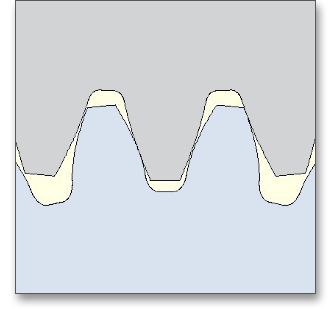

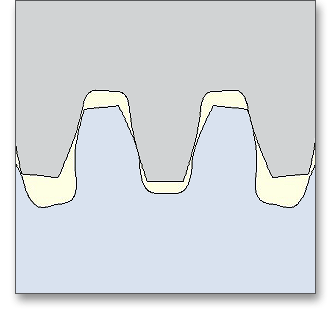

The following figures show the tooth form of a spur gear a), b) and c) calculated with identical parameters.

PIC

Figure 12.7: a) \(\alpha _{n}\) = \(15^{\circ }\)

PIC

Figure 12.8: b) \(\alpha _{n}\) = \(20^{\circ }\)

PIC

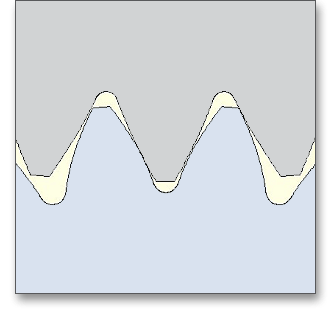

Figure 12.9: c) \(\alpha _{n}\) = \(27^{\circ }\)

12.2.5 Shaft Angle

The shaft angle \(\Sigma \) of a bevel gear pair is the angle between the intersecting gear axes. The shaft angle can be between \(0^{\circ }\) and \(180^{\circ }\), but the shaft angle of \(90^{\circ }\) is normally used.

12.2.6 Offset

Bevel gears differ with regard to the offset. Bevel gears can have intersecting and non-intersecting axes. Bevel gears without offset have intersecting axes, bevel gears with offset have non-intersecting axes and are hypoid gears. Subsequently, this information refers to a bevel gear without offset, then \( a = 0\).

12.2.7 Number of Teeth

The number of teeth may influence the tooth profile curvature, tooth depth and the manufacturing of the gearing (e.g., undercut, pointed teeth). The smallest allowed number of teeth is ‘5’, but in order to ensure good running properties it is highly recommended that you choose a value larger than ‘8’.

‘5’ is the smallest number you are allowed to enter into the input field. Please keep in mind that the pinion always gets the smaller number of teeth. ISO 23509 (bevel and hypoid gear geometry) gives recommended minimum pinion numbers of teeth for spiral bevel gears depending on the gear ratio \(u = z_{2}/z_{1}\). The gear ratio is the ratio of the number of gear teeth to the number of pinion teeth.

Suggested Values for Minimum Pinion Numbers of Teeth1

Approximate Ratio

Minimum Number of Pinion Teeth, \(z_{1}\)

\(1.00 \leq u \leq 1.50\)

13

\(1.50 \leq u \leq 1.75\)

12

\(1.75 \leq u \leq 2.00\)

11

\(2.00 \leq u \leq 2.50\)

10

\(2.50 \leq u \leq 3.00\)

9

\(3.00 \leq u \leq 3.50\)

9

\(3.50 \leq u \leq 4.00\)

9

\(4.00 \leq u \leq 4.50\)

8

\(4.50 \leq u \leq 5.00\)

7

\(5.00 \leq u \leq 6.00\)

6

\(6.00 \leq u \leq 7.50\)

5

\(7.50 \leq u \leq 10.0\)

5
1 from: ISO 23509: Bevel and Hypoid Gear Geometry, p. 70, table B.2

Please note: For the manufacturing on a Klingelnberg machine, the number of teeth of gear/pinion and the number of blade groups should have no common factor. If there is a common factor, the same blades will always engage.

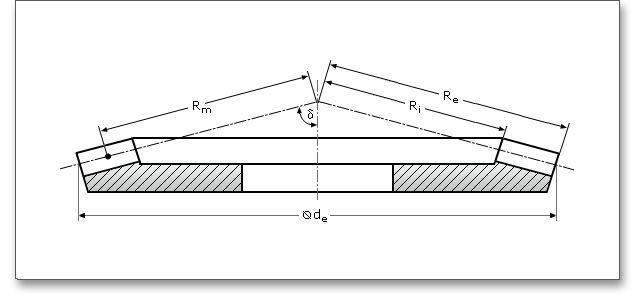

12.2.8 Reference Cone Diameter and Reference Cone Angle

The reference cone diameter \(d_{e}\) is the outer diameter of the reference cone. The reference cone is the reference surface (rotational surface around the gear axis) of a bevel gear, a virtual surface that is used to determine the basic parameters. The reference cone angle \(\delta \) is the angle between the gear axis and the reference cone envelope line. There is a ‘Lock’ button next to the input field for the reference cone diameter. This button can be enabled or disabled. With locking the input field for the reference cone diameter, the input field for the normal module is enabled. Now you can modify both the normal module and the spiral angle. Clicking on the ‘Lock’ button next to the input field of normal module or spiral angle will enable the input field for the reference cone diameter.

PIC

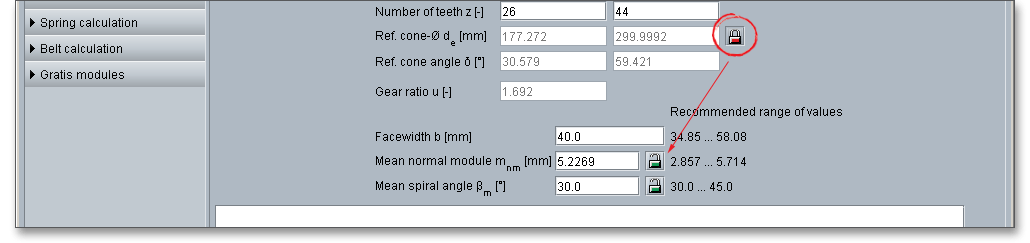

Figure 12.10: ‘Lock’ button

12.2.9 Facewidth

The facewidth is the portion of the reference cone envelope line lying between the inner and outer end faces of the teeth and is denoted by \(b\).

PIC

Figure 12.11: Facewidth

The facewidth \(b\) is dependent upon the kind of application of the gearing and the cone distance at the back cone \(R_{e}\). The following table shows some typical values for the facewidth:

Typical Values for the Facewidth \(b\)2
Kind of Application Facewidth \(b\)
Light and medium-duty gears for machines and vehicles \(3.5 \leq (R_{e}/b) \leq 5.0\)
Heavy-duty gears for machines, road and rail vehicles \(3.0 \leq (R_{e}/b) \leq 3.5\)
2 from: Klingelnberg KN3028: Auslegung eines Kegelradgetriebes ohne Achsversatz mit Klingelnberg Zyklo-Palloid®-Verzahnung, p. 11

12.2.10 Mean Normal Module

The normal module \(m_{n}\) is one of the basic parameters for the length dimensions of a bevel gear tooth system. It is specified for a given cone distance. The normal module on the mean cone distance \(R_{m}\) is a common parameter and the value of module is expressed in millimeters. The normal module is determined directly from the mean spiral angle. A possible value range is displayed to the right of the corresponding input field. To be on the safe side, you should stay within the recommended value range. The input field is disabled by default. With locking the input field for the spiral angle, the input field for the normal module is enabled and the input field for the spiral angle is disabled. Now you can modify the normal module very easily.

Typical Values for the Normal Module \(m_{n}\)3
Kind of Application Normal Module \(m_{n}\)
Surface-hardened spiral bevel gears, spiral bevel gears with tendency to break \(7 \leq (b/m_{n}) \leq 10 ... (12)\)
Spiral bevel gears with tendency to pit or hardened and tempered and unhardened spiral bevel gears \(10 \leq (b/m_{n}) \leq 12 ... (14)\)
3 from: Klingelnberg KN3028: Auslegung eines Kegelradgetriebes ohne Achsversatz mit Klingelnberg Zyklo-Palloid®-Verzahnung, p. 12

12.2.11 Mean Spiral Angle

The mean spiral angle \(\beta \) is the acute angle between the tangent to the reference tooth trace and the reference cone envelope line through the tangent contact point. \(\beta _{m}\) is specified at the mean cone distance. On a bevel gear the spiral angle varies along the facewidth. Any angle can be selected. Conventionally, a spiral angle \(\beta _{m}\) from \(30^{\circ }\) to \(45^{\circ }\) is used in order to assure a smooth tooth action. The spiral angle may influence the gear ratios, the tooth load as well the bearing loads. The input field for the spiral angle has a ‘Lock’ button to modify the input values. The input field is enabled by default. Click on the ‘Lock’ button, the input field is disabled and the input field for the normal module is enabled. The normal module and helix angle affect each other (for a given outer reference cone diameter \(d_{e}\)), so you can optimize the values to meet your individual requirements. A possible value range is displayed to the right of the corresponding input field. To be on the safe side, you should stay within the recommended value range.

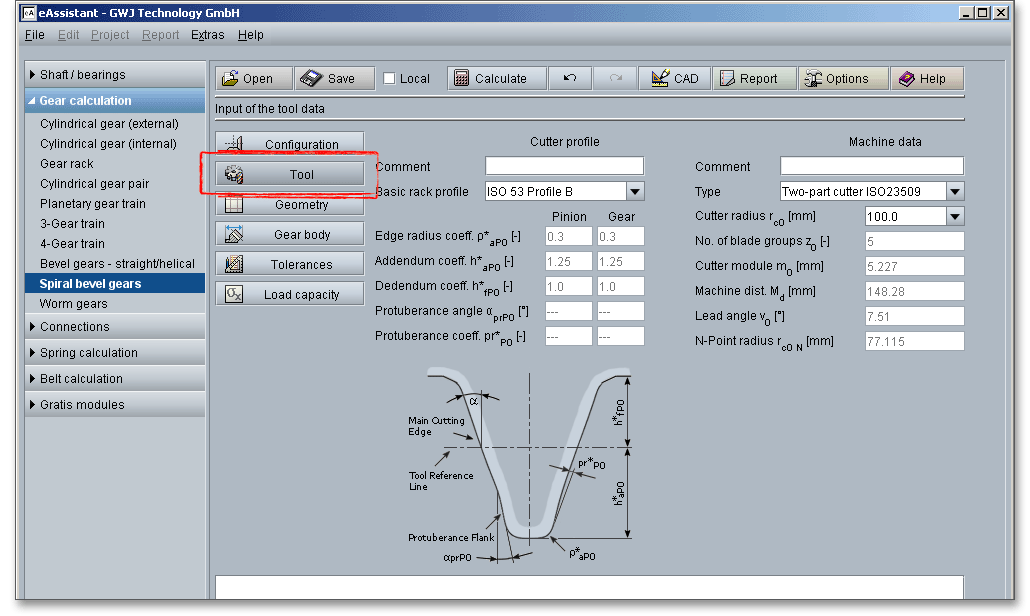

12.3 Input of Tool Data

A basic rack profile can be selected from a listbox or can be defined individually. Specific tools can be added to the list by choosing ‘user-defined input’. The listbox displays a list of available Klingelnberg machines that may be selected for the manufacturing process by the user. Individual machine tool data or machine tool data according to ISO can be defined as well.

PIC

Figure 12.12: Input of tool data

Please note: You can add a description or a short comment to the cutter profile and the machine data. The notes will appear later in the calculation report.

The Zyklo-Palloid® method is a continuous cutting process. Two-part cutter heads are used to generate the right and left flanks of the bevel gear. The cutter head consists of two parts, on one part are the inner blades for cutting the convex flanks and on the other part are the outer blades for cutting the concave flanks. A cutter head blade group includes several cutter blades and according to the number of blade groups, single blade and multi blade cutter heads can be distinguished. Right and left-hand gears (gear and pinion of a gear pair) can be cut by one cutter head, only the blades of the spiral direction must be replaced with those of the other spiral direction. The advantage of a two-part cutter head is obvious: the curvature of the tooth traces of gear and mating gear can be freely modified and thus independent corrections of the tooth pattern are possible.

12.3.1 Standard Basic Rack Tooth Profile

In general, a standard basic rack tooth profile according to DIN 867 is used for bevel gears having a constant tooth depth. The normal module is used as a reference length in the middle of the tooth width. The following standard basic rack profiles are available for your calculation. Choose the following profiles from the listbox:

Please Note: If you select ‘user-defined input’, then the input fields for the edge radius, the addendum coefficient and the dedendum coefficient are activated. Now it is easy to modify quickly the basic rack profile.

PIC

Figure 12.13: User-defined input for the basic rack tooth profile

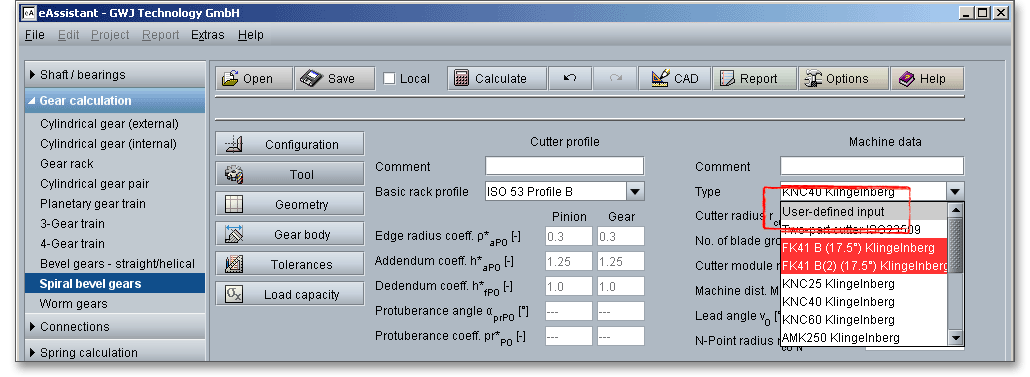

12.3.2 Machine Type

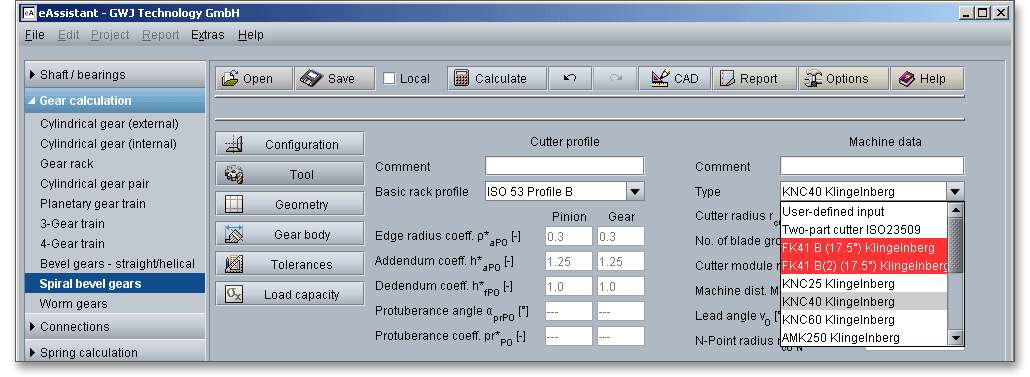

The calaculation module provides several machine types. Choose on of the following machine types from the listbox:

Please Note: Select ‘user-defined input’, then the input fields for cutter radius, number of blade groups and cutter module are enabled. Thus, you can specify individual parameters.

PIC

Figure 12.14: User-defined input for machine data

As you can see, these days there is a multiplicity of different machine types available for the cutting process. The eAssistantsoftware offers an easy way to find the machine type that is right for your requirements. The machines that are suitable for your application are determined automatically. The types marked in red are not suitable for your kind of application. On the basis of the selected machine type, the possible cutter radii are determined immediately.

PIC

Figure 12.15: Selection of machine type

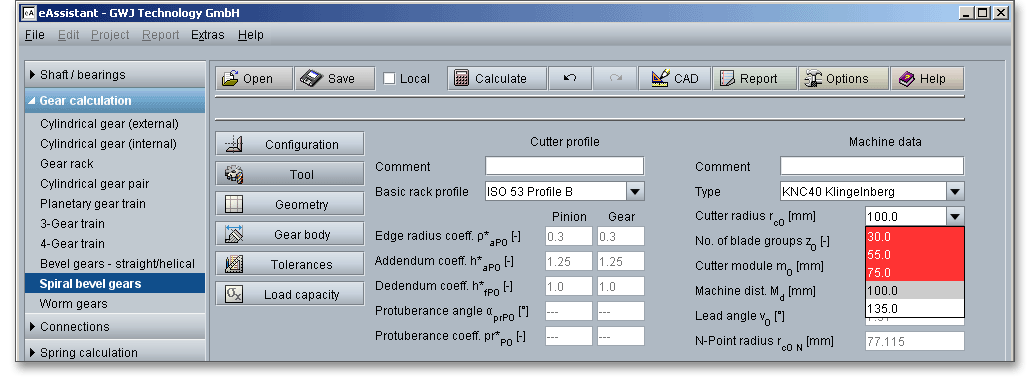

12.3.3 Cutter Radius

The cutter radius is the distance between the pitch point of the cutter and the rotational axis. The cutter radius determines the radius of curvature of the tooth trace and has a significant effect on the displacement of the bevel gear. The cutter radius affects also the inner and outer spiral angles and the space width along the facewidth in the normal section.

PIC

Figure 12.16: Cutter radius

Due to economic reasons, the cutter radius is limited to standardized values. These values can be selected from the listbox. Not applicable radii will automatically be highlighted on screen for an easy identification. By selecting ‘user-defined input’ for the machine type, the cutter radius can be defined manually.

PIC

Figure 12.17: Selection of cutter radius

12.3.4 Number of Blade Groups and Machine Distance

The Zyklo-Palloid® method is a continuous process where the blades are arranged in blade groups. Each blade group machines one tooth gap. The number of groups is referred to as the number of blade groups. The machine distance \(M_{d}\) is the radius of the cutter head center point and is calculated and displayed automatically.

12.4 Input of Geometry Data

The input mask for the geometry data allows the specification of the spiral direction as well as the profile shift and thickness modification.

PIC

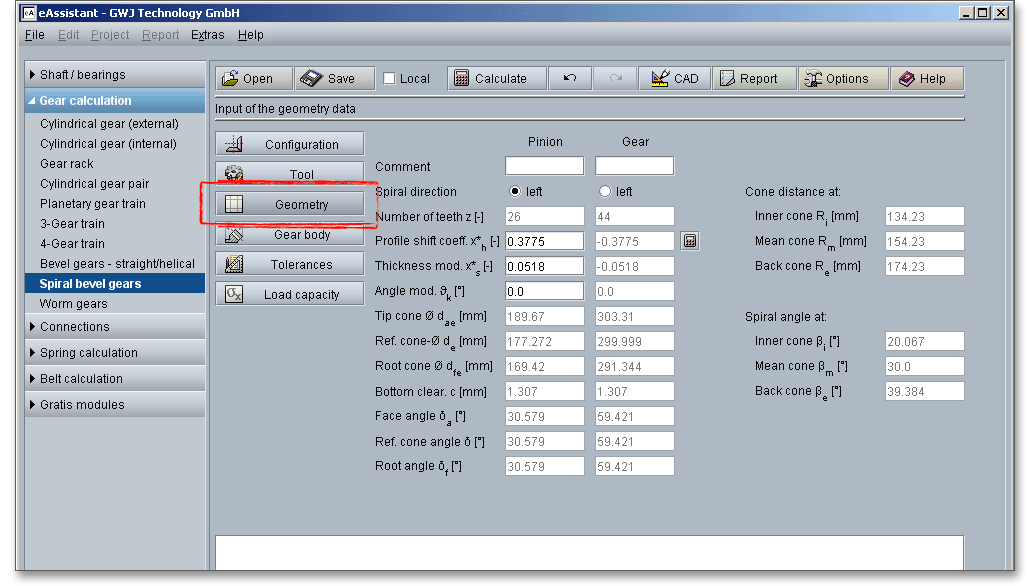

Figure 12.18: Input of geometry data

12.4.1 Spiral Direction

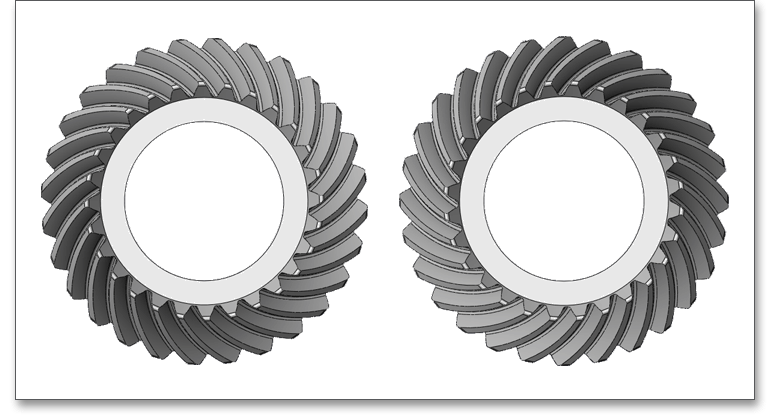

A left-hand pinion comes into mesh with a right-hand gear and vice-versa. When viewed the upright tooth from the reference cone apex and the tooth makes a clockwise spiral from the base leaning towards the apex, then the tooth system is right-handed and left-handed when the tooth makes an anti-clockwise spiral. The spiral directions of pinion and gear are always opposite. The pinion is usually the driving member of a meshing pair and defines the direction. The spiral direction has no influence on the gear noise or efficiency of the gears.

PIC

Figure 12.19: Spiral direction

12.4.2 Profile Shift

The bevel gear tooth system is designed as a gear pair with reference center distance. This means, a bevel gear with a positive profile shift is always meshed with a bevel gear having an equally large negative profile shift. Hence, the sum of the profile shift coefficients is 0.

The profile shift is

The following factors may influence the choice of the profile shift:

12.4.3 Thickness Modification

By using the thickness modification, the tooth root thickness is changed and this automatically changes the tooth spacewidth. The thickness modification can be selected quite freely and is used to compensate the differences in the load capacity of the crown gear and the pinion. \(x_{S}^{\ast }\) on pinion and gear is equal. This thickness modification offers a perfect opportunity to optimize the bevel gear toothing.

12.4.4 Angle Modification

By means of the angle modification, the pinion gets an additional profile modification at the small diameter \(R_{i}\) to obtain a better tooth operation and to avoid cutter interference with a hub or shoulder. In general, the value for the angle modification should not exceed \(5^{\circ }\) and should be used only for special cases.

PIC

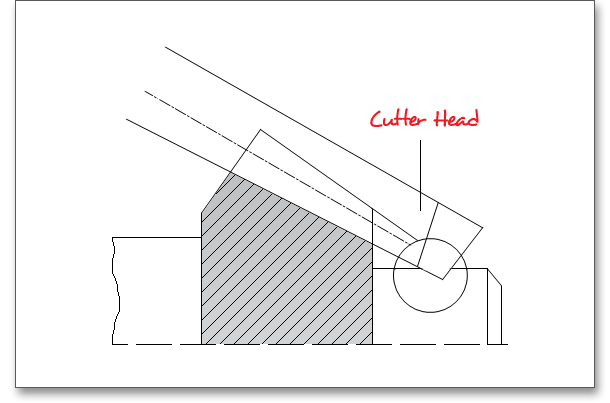

Figure 12.20: Angle modification

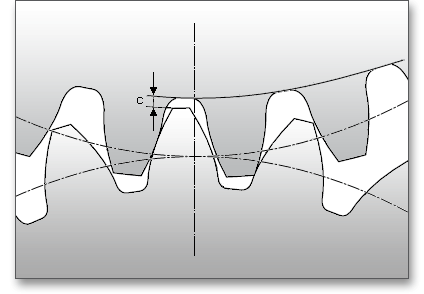

12.4.5 Bottom Clearance

The buttom clearance \(c\) is the minimum distance between the tip of the tooth and root fillet area of the mating tooth. The size of the bottom clearance is usually between 0.2 to 0.3 \(\cdot \) mean normal module.

PIC

Figure 12.21: Bottom clearance

12.4.6 Face Angle

The face angle \(\delta _{a}\) is enclosed by the gear axis and the envelope line of the tip cone.

12.4.7 Root Angle

The root angle \(\delta _{f}\) is enclosed by the gear axis and the envelope line of the root cone.

12.4.8 Cone Distance

The cone distance \(R\) is the tip distance on the reference cone. The outer cone distance \(R_{e}\) is the length of the envelope lines of the reference cone bounded by the outer reference cone diameter. The mean cone distance \(R_{m}\) describes the length of the envelope lines of the reference cone bounded by the mean reference cone diameter or the outer cone distance diminished by half the facewidth \(b\). The inner cone distance \(R_{i}\) is the length of the envelope lines of the reference cone bounded by the inner reference cone diameter or the outer cone distance diminished by the facewidth \(b\).

PIC

Figure 12.22: Cone distance

12.5 Input of Data for the Gear Body

This input mask allows the input of the data for the gear body. This data can be used for the dimension sheet or CAD model. In case a tooth tip chamfering is necessary, then the chamfering is carried out automatically by the calculation module. By clicking on the ‘Tooth tip chamfering’ button, the chamfering can be easily modified manually if required.

PIC

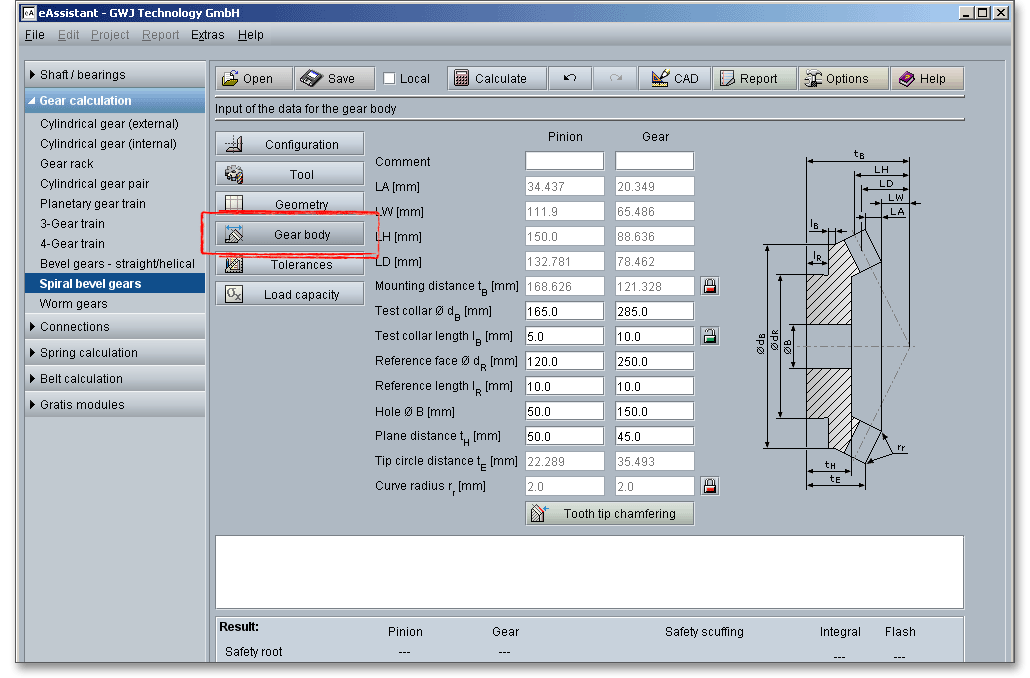

Figure 12.23: Input of data for the gear body

12.5.1 Mounting Distance

The mounting distance \(t_{B}\) is the distance between the reference cone apex and the reference face. The mounting distance is required for the manufacturing, testing and mounting process of the bevel gear. There is a ‘Lock’ button next to the mounting distance. This button is disabled by default. By clicking on the ‘Lock’ button, you enable the input field and you can modify the mounting distance. In case the input for the mounting distance is enabled, the input field for the test collar length is automatically disabled. If you click again on the ‘Lock’ button next to the test collar length, the input field is enabled again.

12.5.2 Plane Distance

The plane distance is the distance between the reference face and a freely selectable plane perpendicular to the gear axis and is denoted by \(t_{H}\).

12.5.3 Tip Circle Distance

The tip circle distance \(t_{E}\) is the distance between tip circle on the back cone and the reference face.

12.5.4 Curve Radius

The Klingelnberg standard provides some reference values for the curve radius \(r_{r}\) at the tooth ends selectable for pinion and crown gear. The curve radius is set automatically by the calculation module according to Klingelnberg. There is the possibility to enable the curve radius using the ‘Lock’ button. Now you can add and modify the curve radius very easily. Click on the button again to revert back to the default state.

PIC

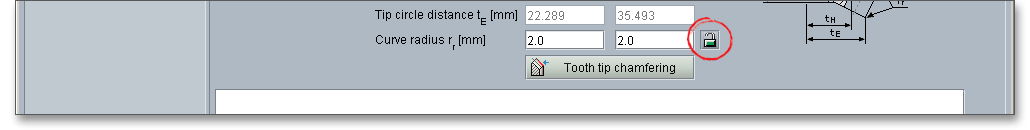

Figure 12.24: Modification of the curve radius

The following table shows the values set by the calculation module:

Typical Values for the Curve Radius \(r_{r}\)4
\(m_{n}\) 1.0-2.0 2.0-3.5 3.5-5.0 5.0-6.0 6.0-7.0 7.0-9.0
\(r_{r}\) 0.5 1.0 1.5 2.0 2.5 3.0
4 from: Klingelnberg KN3028: Auslegung eines Kegelradgetriebes ohne Achsversatz mit Klingelnberg Zyklo-Palloid®-Verzahnung, p. 33

Typical Values for the Curve Radius \(r_{r}\)4
\(m_{n}\) 9.0-10 10-13 13-14 14-16 16-19 19-25
\(r_{r}\) 3.5 4.0 4.5 5.0 5.5 6.0
4 from: Klingelnberg KN3028: Auslegung eines Kegelradgetriebes ohne Achsversatz mit Klingelnberg Zyklo-Palloid®-Verzahnung, p. 33

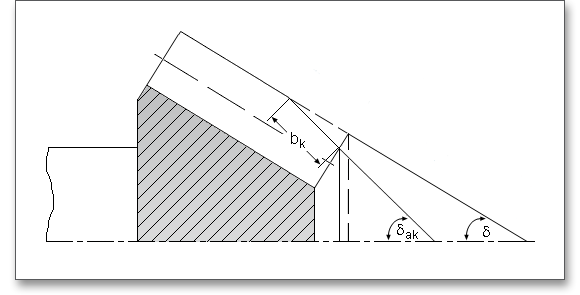

12.5.5 Tooth Tip Chamfering

If the tip tooth thickness \(s_{a}\) is smaller than \(0.3 \cdot m_{n}\), a tooth tip chamfering has to be carried out to avoid the through-hardening. The risk of having a pointed tooth occurs at the smaller diameter of the pinion. For the tooth tip chamfering the face angle \(\delta _{ak}\) is increased along the facewidth \(b_{k}\) so that an approximately constant tooth tip thickness of \(0.3 \cdot m_{n}\) is obtained in this area.

PIC

Figure 12.25: Tooth tip chamfering

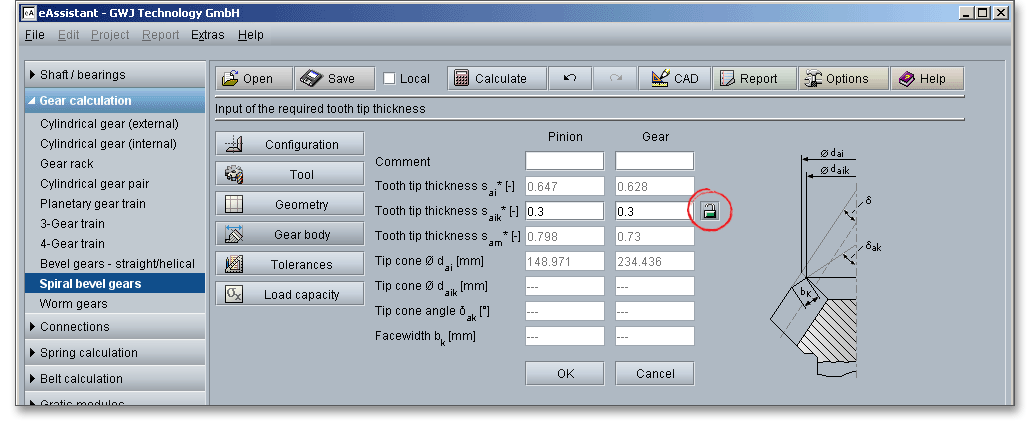

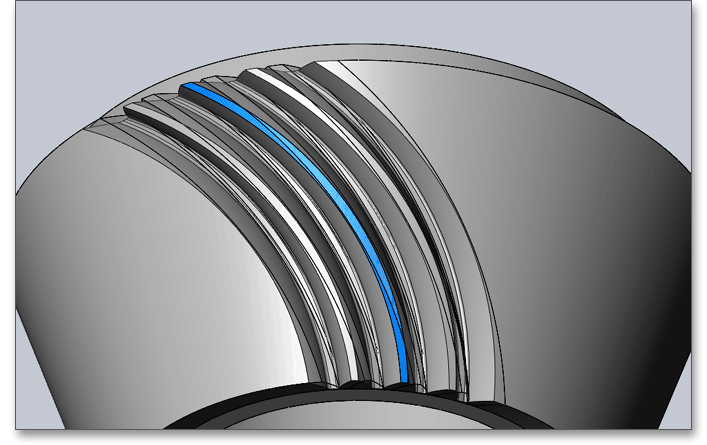

The tooth tip chamfering is carried out automatically by the calculation module. If this is the case, you will receive a note in the message window. By clicking on the ‘Tooth tip chamfering’ button, the values for the chamfering are displayed. By clicking on the ‘Lock’ button, you can define the tooth tip thickness \(s_{aik}\) and therefore influence the tooth tip chamfering. Click on the ‘Lock’ button again to revert back to the default state.

PIC

Figure 12.26: Tooth tip chamfering

12.6 Input of Data for the Determination of Tolerances and Backlash

In addition to the class of shaft position accuracy, the calculation module provides proposals for the amount of backlash according to Klingelnberg or Niemann. A backlash can be defined individually as well.

PIC

Figure 12.27: Input data for the determination of tolerances and backlash

12.6.1 Shaft Angle Deviation and Common Apex Deviation

The shaft angle deviation \(f_{\Sigma }\) describes the difference between the shaft angle of both gear axes in their actual position and the theoretical value of this angle. The common apex deviation \(f_{a}\) of a bevel gear pair is the crossing distance of both gear axes in their actual position. The class of shaft position accuracy determines the shaft angle deviation and the common apex deviation. The calculation is in accordance with DIN 3965.

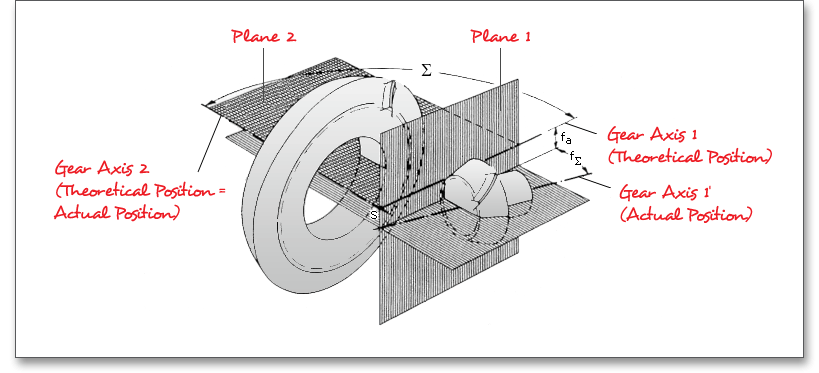

PIC

Figure 12.28: Bevel gear pair: Position deviation of gear axes

12.6.2 Normal Backlash

The general purpose of backlash is to prevent the gears from jamming and manufacturing inaccuracies. For that a proper backlash must be provided.

12.6.3 Circumferential Backlash

Errors in machining influence the smooth and continuous tooth action. That makes it necessary to provide a circumferential backlash to avoid jamming or interferences of the gearing. But please keep in mind that a small circumferential backlash can cause jamming and using a too large circumferential backlash weakens the tooth thickness. The choice of the right backlash will depend upon a number of factors, including the size of the gearing, the tooth quality as well as the case of application.

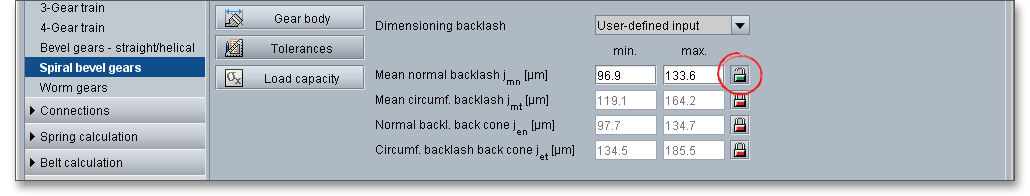

The normal and circumferential backlash are determined according to Klingelnberg or Niemann. The corresponding method can be selected from the listbox. Select the option ‘user-defined input’ from the listbox. Now you are able to enter your individual backlash. Click on the ‘Lock’ button to enable the input field and to specify your own value. If you select again one of the methods, then the ‘Lock’ button and the input fields are disabled.

PIC

Figure 12.29: Selection of ‘user-defined input’

12.6.4 Tooth Quality

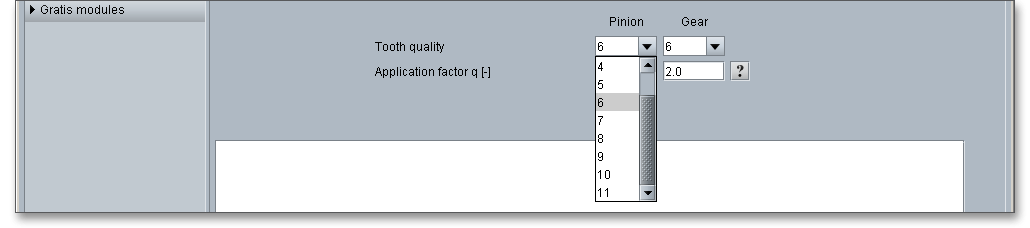

ISO 17485 defines ten accuracy grades, numbered 2 to 11 in order of decreasing precision. Accuracy grade ‘2’ describes the highest possible accuracy, ‘11’ is the lowest accuracy.

PIC

Figure 12.30: Tooth quality

The tooth quality determines appropriate tolerances for:

12.6.5 Application Factor q

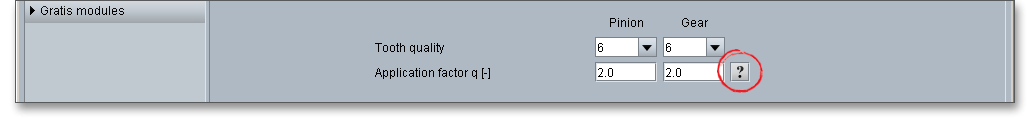

ISO 17485 uses the application factor \(q\) in order to determine appropriate tolerance values for a required accuracy grade. To avoid gear noise problems or tooth breakage, the following reference values for the application factor should be used. Click the ’Question mark’ button to open the following table.

PIC

Figure 12.31: Application factor

Typical Values for the Application Factor \(q\) According to ISO5
Application Typical Values for Amplitudes of Single Flank Composite Tooth Mesh Component Deviations Factor \(q\)
Passenger car < 30 0.05
Truck 20 - 50 1.0
Industrial 40 - 100 2 to 2.5
Aircraft 40 - 200 (80 average) 2.0
5 from: ISO 17485: Bevel Gears - ISO System of Accuracy, p. 26, table B.1

12.7 Calculation of Load Capacity of Spiral Bevel Gears

Gears fail by tooth breakage, pitting as well as by scuffing. The strength is determined by the loads, the geometry of gearing as well as selected materials. The calculation of the load capacity is about the proof of the following strength factors that result from the above-mentioned forms of damage:

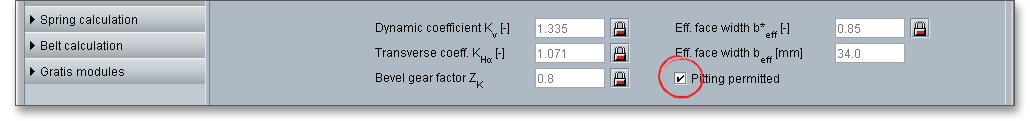

Use the calculation module to check the load capacity of tooth root and tooth flank. The calculation of the scuffing load capacity is not yet available. The material properties, endurance as well as the kind of lubrication and the lubricant will be considered in the calculation. There are extended input options to influence the number of load changes or the roughness, the mode of operation can be selected.

PIC

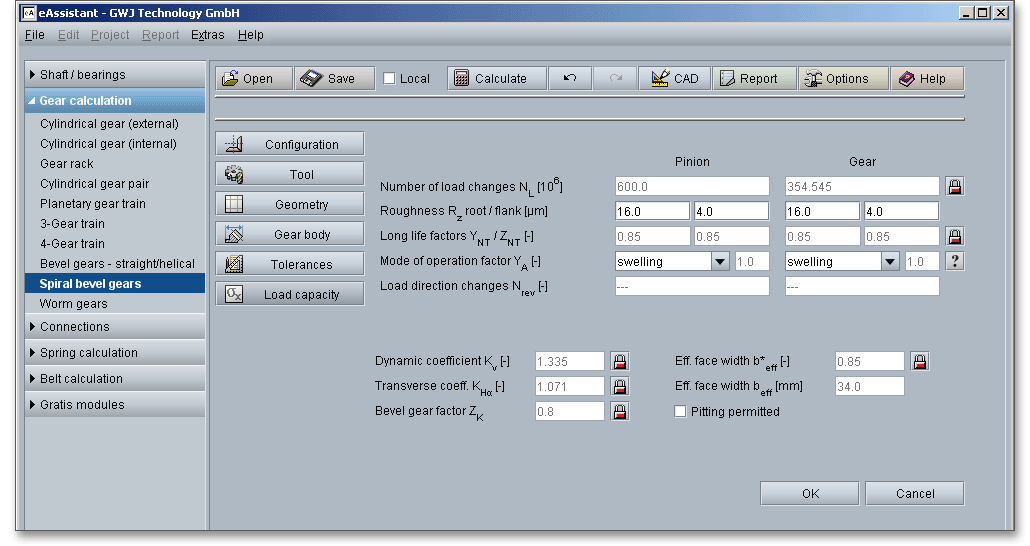

Figure 12.32: Calculation of load capacity

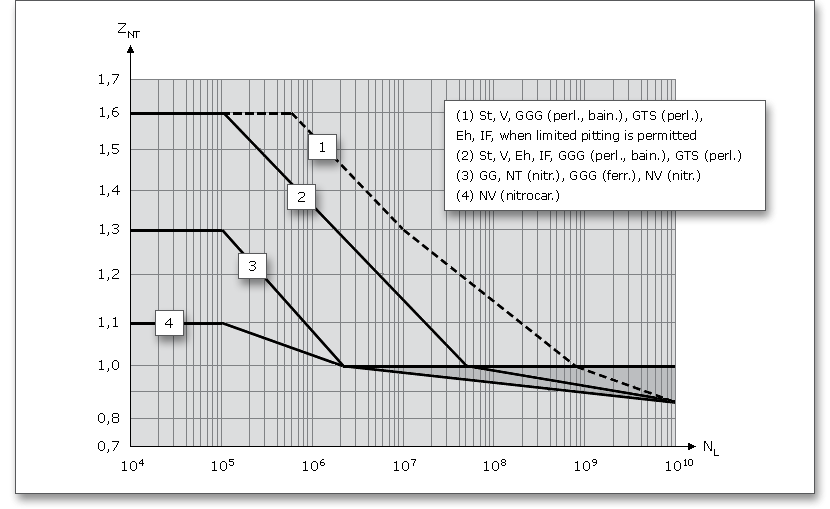

The following factors consider the influences of the load capacity calculation:

Load Capacity of the Tooth Root - Tooth Breakage

Tooth breakage is a fatigue failure. Pitting, scuffing or wear may weaken the tooth so that it breaks. The slow progress of the fracture apparently causes the metal to break like brittle material. A tear or grinding notch may cause a tooth breakage. Gear-tooth fractures ordinarily start in the root fillet. The tooth breakage can destroy an entire gearing and leads to a failure of the gearing. Sometimes a new tooth will break as a result of severe overload or a serious defect in the tooth structure. According to DIN 3990, an operation with a reduced load is possible after a tooth breakage, if just a small portion of a tooth broke off and the other parts of the gearing are intact.

For a high load capacity of the tooth root, the following methods are advantageous: positive profile shift (for small number of teeth), usage of hardened and tempered or case-hardened materials with larger load capacity of the tooth root, larger root fillet, larger module

Load Capacity of the Tooth Flank - Pitting of Gear Teeth

Pitting is a fatigue failure and is characterized by little bits of metal breaking out of the surface and thereby leaving small holes or pits, so that oil seeps into the pits. This is caused by high tooth loads leading to excessive surface stress, a high local temperature due to high rubbing speeds or inadequate lubrication. The cracking of the surface develops, spreads and ultimately results in small bits breaking out of the tooth surface. But it is often possible to get some years of service out of gears that have pitted rather extensively.

For a high load capacity of the tooth flank, the following methods are advantageous: large number of teeth, positive profile shift (for small number of teeth), higher pressure angle, large hardness of tooth flank, nitriding, more viscous oil

Scuffing Load Capacity

Scuffing is a surface destruction and it can be caused by a lubrication failure. Tears and scratches appear on the rubbing surface of the teeth. This form of damage is called ‘scuffing’. The terms of ‘scuffing’ and ‘scoring’ are used interchangeably. Scuffing is an important form of damage leading to component replacements in lubricated mechanical systems. Compared with tooth breakage and pitting, it is not a fatigue failure, it can come very quickly. A short overload can lead to scuffing and the gearing fails. Scuffing is apt to occur when the gears are first put into operation because the teeth have not sufficient operating time to develop smooth surfaces. Due to the scuffing, the temperature, the forces and the noise increase, the gear teeth finally break off. The following factors may influence the occurrence of scuffing:

After the occurrence of scuffing, high-speed gears apt to additional dynamic forces that cause usually pitting or tooth breakage. The high surface temperature may cause a breakdown of the lubricating film. The following factors support scuffing:

For a high scuffing load capacity, the following methods are advantageous: E.P. oils (oil that contains chemical additives), a careful running-in period of the gearing, low sliding velocity due to tip relief and a smaller module

12.7.1 Activate Load Capacity

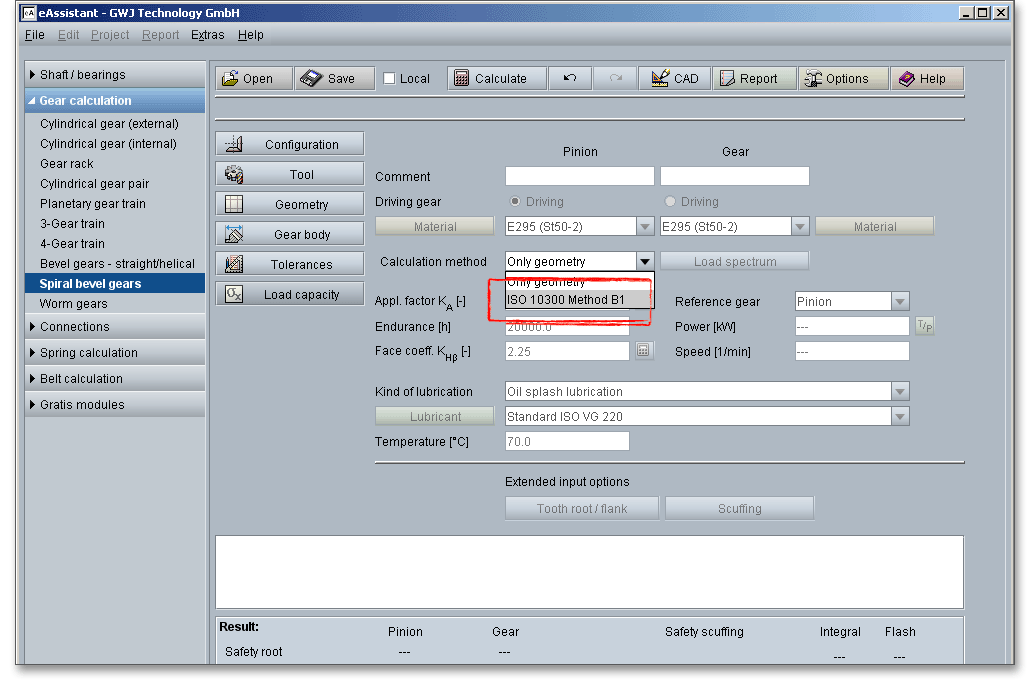

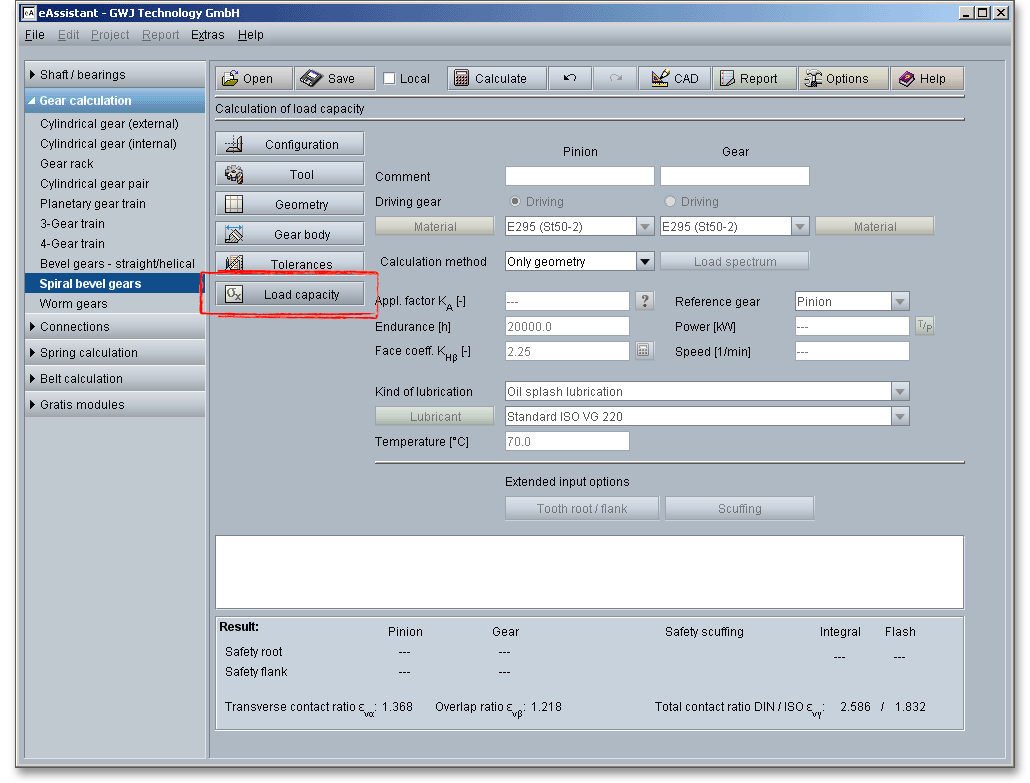

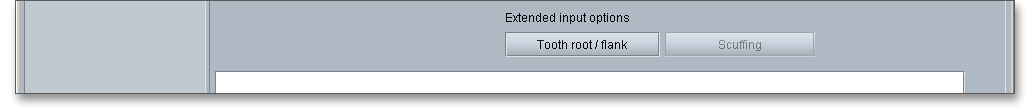

Click on the button ‘Load capacity’ to get to the calculation mask. You will notice that all input fields or listboxes are disabled. When you select the entry ‘ISO 10300 Method B1’ from the listbox ‘Calculation method’, all input fields are enabled. In case you do not need the calculation for the load capacity, the calculation can be deactivated. Thus, the size of the calculation report becomes smaller.

PIC

Figure 12.33: Activate the calculation for the load capacity

12.7.2 Inputs for Load Capacity According to ISO 10300 Method B1

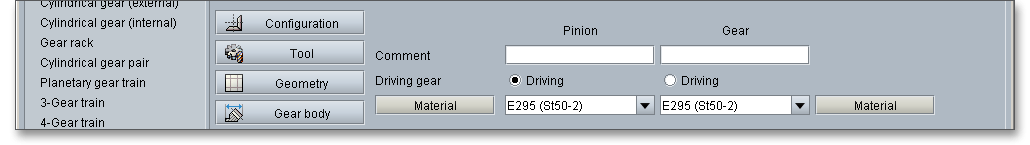

Comment

You can add a description or a short comment to gear 1 and gear 2.

PIC

Figure 12.34: Add a description

Material Selection

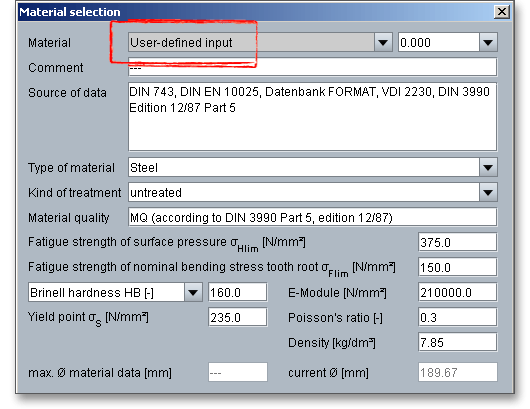

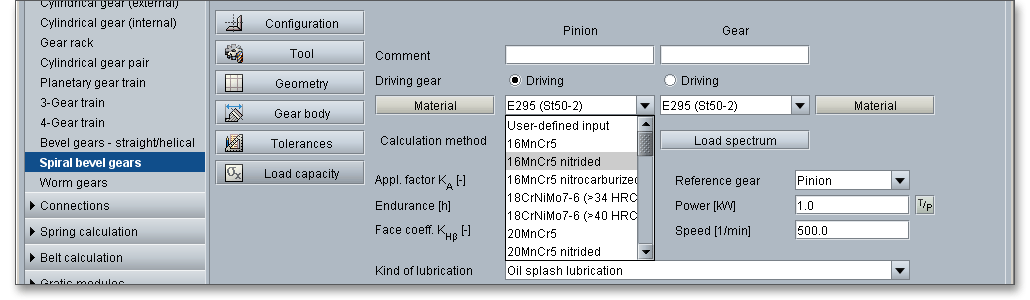

Select an appropriate material directly from the listbox. Clicking the button ‘Material’ opens the material database.

PIC

Figure 12.35: Listbox ‘Material’

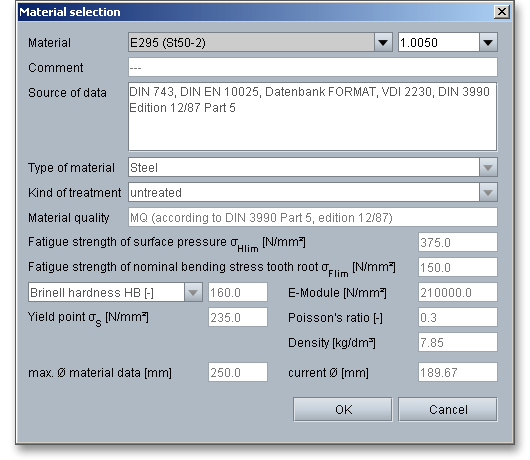

The material database provides some detailed information on the several kinds of material. If the listbox is active, the two arrow keys ‘Up’ and ‘Down’ of your keyboard allows you to search through the database, so you can compare the different values with each other.

PIC

Figure 12.36: Material selection

In order for gears to achieve their intended performance, life and reliability, the selection of a suitable material is very important. Steel is the most common material that is used for gears. There are a number of steels used for gears, ranging from plain carbon steels through the highly alloyed steels from low to high carbon contents. The choice will depend upon a number of factors, including size, service and design. For pinion and gear, the same hardened and tempered steel may be used. It has to be kept in mind that unhardened gears with equal hardness should not be meshed with each other because scuffing is apt to occur. A hardened or nidrided gear \(HRC > 50\) smoothes the tooth flanks of the hardened and tempered mating gear, reduces the form deviations and increases the load capacity of the tooth flank. For a mating of hardened gears, no hardness difference is necessary. The final selection of the material should be based upon an understanding of the material properties and application requirements.

Kind of Material

Steel casting: Steel casting belongs to the ferrous metals that include carbon (up to max. 2%) and are poured into sand molds to produce several components. Due to a higher melting temperature, steel casting is more difficult to cast than cast iron. Steel casting is cheaper than ground or forged gears.

Steel: Steel is the most common material and is used for medium and high-loaded gears.

Nidrided steel: Nitriding is adding nitrogen to solid iron-base alloys by heating the steel in contact with ammonia gas or other suitable nitrogenous material. This process is used to harden the surface of gears.

Case-hardened steel: Case-hardened steel is a quality and high-grade steel with low carbon content. Case-hardened steel is usually formed by diffusing carbon (carburization), nitrogen (nitriding) into the outer layer of the steel at high temperature and then heat treating the surface layer to the desired hardness. When the steel is cooled rapidly by quenching, the higher carbon content on the outer surface becomes hard while the core remains soft and tough.

Blackheart malleable cast iron (pearlitic structure): Malleable cast iron is a heat-treated iron carbon alloy. Two groups of malleable cast iron are specified, whiteheart and blackheart cast iron. Blackheart malleable cast iron is used for parts with a complex shape, in which a high durability, shock resistance and good machining are important. Malleable cast iron is used for smaller dimensions and has got a higher strength and toughness than steel castings.

Cast iron with spheroidal graphite (pearlitic structure, bainitic structure, ferritic structure): Cast iron usually refers to gray cast iron but identifies a large group of ferrous alloys that contain more than 2% of carbon. It is extremely rare that the maximum carbon content is higher than 4.5%. Cast iron is a low-priced material. However, cast iron has less toughness and ductility than steel. Cast iron with spheroidal graphite can be used for parts with higher vibration stress.

Heat-treated steel: Hardening and tempering is a heat-treating technique for steels by quenching from the hardness temperature and annealing at a high temperature so that the toughness is increased significantly. At the same time, a higher elastic limit is reached. Annealing temperatures and times differ for different materials and with properties desired, steel is usually held for several hours at about \(400^{\circ }C\) to \(700^{\circ }C\). Some steels have to be cooled very quickly (Annealing: in order to achieve the intended properties of work pieces (e.g., desired strength or toughness), reheating of the work pieces to certain temperatures is necessary.).

Gray cast iron: Gray cast iron is used for complex shapes and offers low cost and an easy machinability. It provides excellent damping properties but it is a disadvantage that the load capacity is very low.

Define Your Own Material

In case there is no material that will fulfill the design requirements, then simply define your individual material. Select the option ‘User defined input’ and all inputs and options are activated and you can specify your individual material very easily. Your inputs will be saved to the calculation file. Please be advised that changing the material will delete your defined inputs and you have to enter the inputs again.

PIC

Figure 12.37: Own input of a material

Application Factor \(K_{A}\)

The application factor \(K_{A}\) evaluates the external dynamic forces that affect the gearing. These additional forces are largely dependent on the characteristics of the driving and driven machines as well as the masses and stiffness of the system, including shafts and couplings used in service. Because scuffing is not a fatigue failure, the application factor shall consider the stronger influence of several load peaks during the calculation of the scuffing load capacity. Several load peaks affect directly only the flank temperature. Because of that, the same application factor \(K_{A}\) can be used for the calculation of the scuffing load capacity as well as of the load capacity of the tooth root and tooth flank. The application factor is determined by experience. An application factor of ‘1.0’ is best thought of a perfectly smooth operation. The following table gives some values according to DIN 3990.

Application Factors \(K_{A}\) According to DIN 3990-1: 1987-128
Working Characteristics
Working Characteristics of the Driven Machine




of the Driving Machine Uniform Light shocks Moderate shocks Heavy shocks
Uniform 1.0 1.25 1.5 1.75
Light shocks 1.1 1.35 1.6 1.85
Moderate shocks 1.25 1.5 1.75 2.0
Heavy shocks 1.5 1.75 2.0 2.25 or higher
8 from: DIN 3990 Part 1, December 1987, p. 55, table A1

Working Characteristics of the Driving Machine

Working Characteristics of the Driven Machines

Please Note: You will find a ‘Question mark’ button next to the input field. Click on this button and the above-mentioned table opens. The ‘Question mark’ button is an additional feature and provides further information. You will find this button next to several input fields.

PIC

Figure 12.38: Open table with application factor

Face Load Factors \(K_{F\beta }\) and \(K_{H\beta }\)

The face load factor takes into account the effects of the non-uniform distribution of load over the gear facewidth on the surface stress \(K_{H\beta }\), on the tooth root stress \(K_{F\beta }\) and on the scuffing \(K_{B\beta }\). The face load factor can be entered manually or can determined according to ISO 10300 Part 1 Method C. Click on the ‘Calculator’ button to open the input mask for the face load factor.

PIC

Figure 12.39: Dimensioning of the face load factor

The listbox already displays the entry ‘ISO 10300 Part 1 Method C’ and the input field for the mounting factor \(K_{H\beta -be}\) is active. The table provides some reference values for the mounting factor \(K_{H\beta -be}\). Enter a value from this table into the input field click the button ‘Ok’. The face load factor is determined and applied automatically to the main mask.

PIC

Figure 12.40: Face load factor

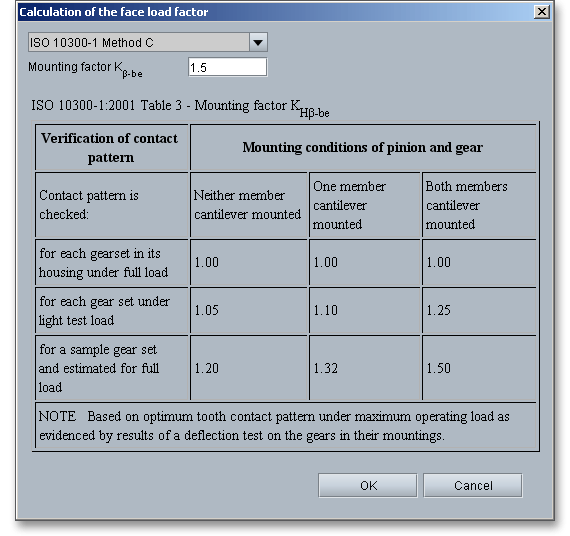

The following table shows reference values for the mounting factor. The influence of the deflections, and thus of the bearing arrangement, is accounted for by the mounting factor \(K_{H\beta -be}\):

Reference Values for the Mounting Factor \(K_{H\beta -be}\)9
Verification of the Contact Pattern
Mounting Conditions of Pinion and Gear



Neither Member Cantilever Mounted

One Member Cantilever Mounted

Both Members Cantilever Mounted

For each gear set in its housing under full load

1.00

1.00

1.00

For each gear set under light test load

1.05

1.10

1.25

For sample gear set and estimated for full load

1.20

1.32

1.50

9 from: ISO 10300 Part 1, 2001, p. 26, table 3

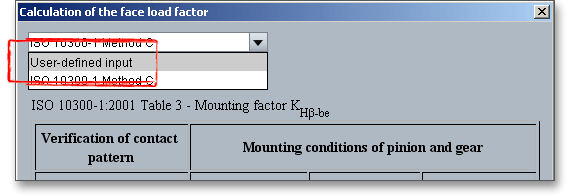

In case you already use a defined face load factor, you can enter this factor. Simply click on the ‘Calculator’ button to open the window for the determination of the face load factor. Select ‘User-defined input‘ from the listbox and click on the ‘OK’ button.

PIC

Figure 12.41: Own input of the face load factor

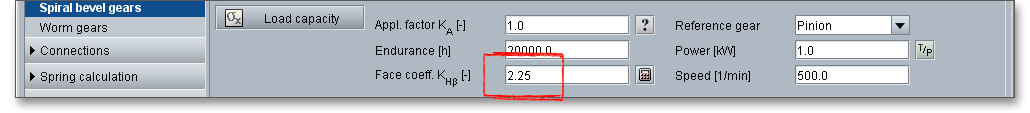

The input field for the face load factor is enabled and you can add your own values. If you need this factor for several calculations, we recommend you to define a template file. That saves both time and work. Enter the value for the face load factor and click on the ‘Save’ button. Please name the file ‘standard’. If you now open the eAssistant module, then module starts with your defined face load factor.

PIC

Figure 12.42: Face load factor
Kind of Lubrication and Selection of a Lubricant

Lubrication serves several purposes but its basic and most important function is to protect the sliding and rolling tooth surfaces from seizing, wear and friction. The friction of the tooth flank is responsible for flank wear, gear heating and gear noise. A reduced flank friction improves the efficiency that is dependent on the tooth load, circumferential velocity, gear quality and the surface condition of the tooth flanks. In order that the gearing should work properly, the selection of a lubricant is an important choice. A liquid lubricant is a good choice and can be easily introduced between the contacting surfaces. In addition, a lubrication has to reduce frictional heat and has to protect the surfaces against corrosion. The bearings and clutches in a gearing require also an appropriate lubricant. Therefore, the lubricant has to be suitable as well. Oil and greases are the most common lubricants.

PIC

Figure 12.43: Selection of the lubricant

Liquid lubricants may be characterized in many different ways. Viscosity is one very important property of a lubricant and determines the oils lubricating efficiency. For the selection of liquid lubricants applies: the smaller circumferential velocity and larger the contact pressure as well as the roughness of tooth flanks, the higher the viscosity. A higher viscosity will result in a higher hydrodynamic load capacity and an increased scuffing load limit where scratching and scuffing of the tooth flanks occur. (Muhs/Wittel/Jannasch/Vossiek: Roloff/Matek Maschinenelemente, 17th revised edition, published by Vieweg, Wiesbaden 2005.)

Please Note: If the viscosity is too low, the oil film will not be sufficiently formed and if the viscosity is too high, the viscosity resistance will also be high and cause temperature rise. For higher speed, a lower viscosity oil should be used and for heavy loads, a higher viscosity oil should be used.

Gears that are running primarily in a gearbox are lubricated with oil. A distinction is made between oil splash lubrication and oil injection lubrication.

Oil splash lubrication: The oil splash lubrication is an easy, reliable and reasonable lubrication system. It is a type of lubrication used in enclosed gear drives. In splash lubrication, the gear tooth dips into a tray of lubricant and transfers the lubricant to the meshing gear as it rotates. As a result, oil reaches all of the places where it is needed. The oil splash lubrication can be used for average speed applications.

Oil injection lubrication: With the oil injection lubrication, the oil can be filtered, cooled and checked and the oil is directly fed to the bearings. The amount of oil can be controlled according to the heat dissipation requirements. The gearbox is used as an oil tank reservoir from which several units can be supplied. The oil is sprayed directly by a pump injector into the mating surfaces.

Grease lubrication: The selection of the grease is dependent upon the circumferential velocity, the kind of application and the service temperature. A grease lubrication requires low maintenance and protects against contamination. Grease lubrication is suitable for any gear system that is opened or enclosed, so long as it runs at low speed. The grease should have a suitable viscosity with good fluidity especially in a enclosed gear unit.

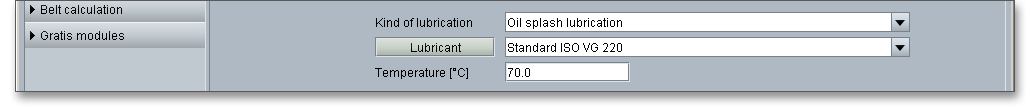

Select an appropriate lubricant directly from the listbox or click on the button ‘Lubricant’ to open the lubricant database.

PIC

Figure 12.44: Selection of the lubricant

The database provides some detailed information on the lubricants (e.g., e.g., density, viscosity, load stage of FZG test). Select the entry ‘user defined input’ to enable the input fields and to enter your own value based on your experience.

PIC

Figure 12.45: Define own lubricant

12.7.3 Extended Input Options for Load Capacity of Tooth Root and Tooth Flank

The main mask of the load capacity provides the button ‘Tooth root/flank’, click on that button and the extended input options appear.

PIC

Figure 12.46: Extended input options

If you do not change any inputs in the following mask, then the default input values are used.

PIC

Figure 12.47: Options for Load Capacity of Tooth Root and Tooth Flank

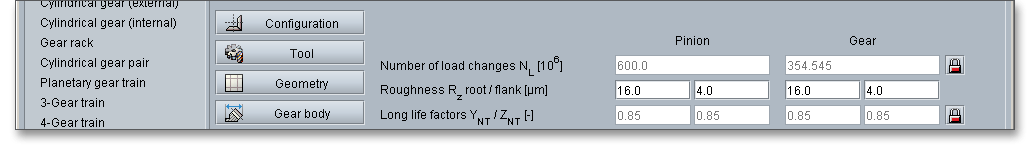

Roughness

The surface roughness of the tooth flanks influences the load capacity of the tooth flanks. The average roughness \(R_{z}\) is the arithmetic average of five individually measured roughness values. The input of the roughness occurs for root and flank of pinion and gear. The right choice of the surface roughness is determined by economical aspects depending upon the intended purpose and manufacturing process. A fine surface can be very expensive because of the high manufacturing costs. A surface that is too rough may not fulfill the required functionality.

PIC

Figure 12.48: Roughness
Long Life Factors \(Y_{NT}\) and \(Z_{NT}\)

The long life factor \(Y_{NT}\) accounts the higher tooth root stress and the long life factor \(Z_{NT}\) accounts the higher contact stress including static stress, which may be tolerable for a limited life (number of load cycles). The main influences to \(Y_{NT}\) and \(Z_{NT}\) are material and heat treatment.

Long life factor \(Y_{NT}\):
With optimum lubrication, material and manufacturing \(Y_{NT}\) = 1.0 may be used for the number of load cycles \(N_{L} = 3 \cdot 10^{6}\). For static stresses \(N_{L} \leq 10^{3}\), the long life factor is 2.5.

Long life factor \(Z_{NT}\):
With optimum lubrication, material and manufacturing \(Z_{NT}\) = 1.0 may be used for the number of load cycles \(N_{L} = 5 \cdot 10^7\). For static stresses \(N_{L} \leq 10^{5}\), the long life factor is 1.6.

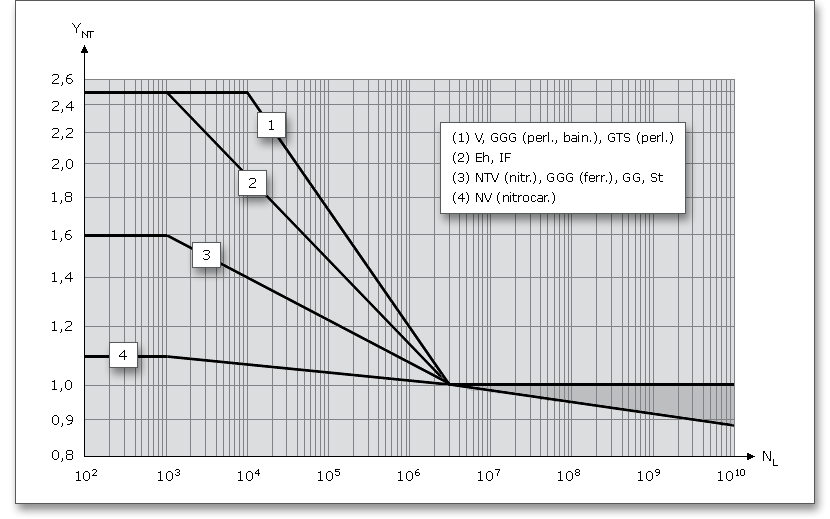

The following figures show the factors \(Y_{NT}\) and \(Z_{NT}\) for the static and endurance stresses depending on heat treatment and material.

PIC

Figure 12.49: Long life factor \(Y_{NT}\)

PIC

Figure 12.50: Long life factor \(Z_{NT}\)

Use the ‘Lock’ button next to modify the long life factors \(Y_{NT}\) and \(Z_{NT}\). The input fields are enabled and you can define your own value for the factors. Please remember to keep the modified input field open or the default values will be used again.

Mode of Operation Factor \(Y_{A}\)

The fatigue strength of the tooth root \(\sigma _{Flim}\) is corrected with the influence of the mode of operation.

\[\sigma _{Flim} = \sigma _{Flim0} Y_{A}\]

\(\sigma _{Flim0}\)Fatigue strength of the tooth root from material data

\(\sigma _{Flim}\)Fatigue strength of the tooth root with influence of the mode of operation factor

\(Y_{A}\)Mode of operation factor (see following table)

The following table provides some guideline values for the mode of operation factor \(Y_{A}\):

Mode of Operation Factor \(Y_{A}\) According to Linke10

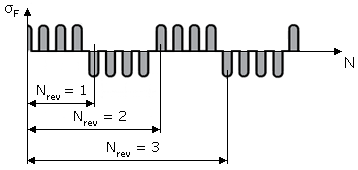

Mode of Operation Mode of Operation Factor \(Y_{A}\) Direction of Load
Swelling 1 PIC
Alternating 0.7 PIC
Oscillating 0.85 - 0.15 \(\frac {lgN_{rev}}{6}\)

(for \(1\leq N_{rev} \leq 10^{6}\))

0.7 (for \(N_{rev} > 10^{6}\))
PIC
Please Note: \(N_{rev}\) = Number of load direction changes during operation time
10 from: Linke, H.: Stirnradverzahnung Berechnung Werkstoffe Fertigung, Carl Hanser Verlag Muenchen Wien, 1996, p. 321, table 6.5/7

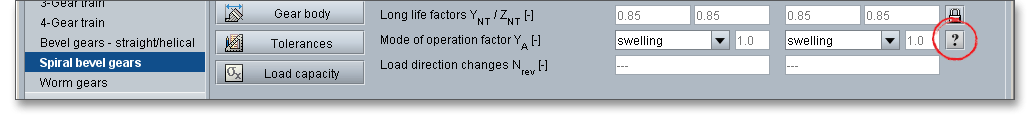

Clicking the ‘Question mark’ button allows you to open the table above.

PIC

Figure 12.51: ‘Question mark’ button to open the table
Dynamic Coefficient \(K_{V}\)

The dynamic coefficient \(K_{V}\) considers additional inner dynamic forces. Inner dynamic forces are caused by mesh alignments, lead crowning, deformation of teeth, the housing, shafts and gear bodies as well as oscillation of the wheel masses. As the circumferential velocity of the gear rim increases, the dynamic forces increase. The forces decrease with an increasing load of the teeth. Click on the ‘Lock’ button to enable the input field and enter your own value.

PIC

Figure 12.52: Dynamic coefficient, transverse coefficient, bevel gear factor

Transverse Coefficients \(K_{H\alpha }\)

The transverse coefficients account for the effect of the non-uniform distribution of transverse load between several pairs of simultaneously contacting gear teeth on the surface pressure (\(K_{H\alpha }\)), stress leading to scuffing (\(K_{B\alpha }\)) and loading of the tooth root (\(K_{F\alpha }\)). Click on the ‘Lock’ button to enable the input field and enter your own value.

Bevel Gear Factor \(Z_{K}\)

The factor \(Z_{K}\) is an empirical factor which accounts for the difference between bevel- and cylindrical-gear loading in such a way as to agree with practical experience. It is a stress adjustment constant which permits the rating of bevel, spur and helical gears, with the same allowable contact stress numbers for any material. The eAssistant software uses \(Z_{K}\) = 0.8 for bevel gears. Click the ‘Lock’ button to modify the bevel gear factor.

Effective Facewidth

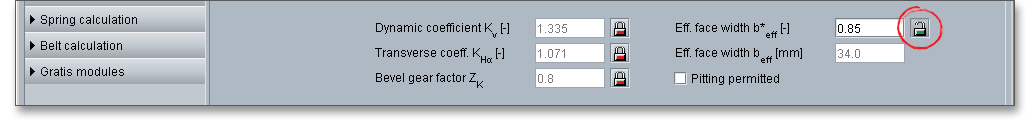

\(b_{e}\)is effective facewidth (real length of contact pattern). In the case of full load, the contact pattern typically has a minimum length of 85% of facewidth. If it is not possible to obtain information of pattern length under load conditions, \(b_{e} = 0.85 \cdot b\) should be used. Click the ‘Lock’ button to enter the factor for effective facewidth.

PIC

Figure 12.53: Effective facewidth
Permit Pitting

In specific cases, the development of pits on the gear flank is allowed. Use this option to permit several pits. In general, initial pitting is considered normal and is not a cause for concern. In particular, case-hardened and nitrided gears usually has the tendency to pit near the tooth root and lead eventually to fatigue breakage. Here an individual assessment is necessary. In some cases (aerospace industry), pits are absolutely not permitted. For turbo transmissions, pits may lead to oscillations and increased additional dynamic forces.

PIC

Figure 12.54: Permit pitting

12.8 Message Window

The calculation module provides a message window. This message window displays detailed information, helpful hints or warnings about problems. One of the main benefits of the program is that the software provides suggestions for correcting errors during the data input. If you check the message window carefully for any errors or warnings and follow the hints, you are able to find a solution to quickly resolve calculation problems. For example, the following messages may appear:

PIC

Figure 12.55: Message window

12.9 Quick Info: Tooltip

The quick info tooltip provides additional information about all input fields and buttons. Move the mouse pointer over the input field or button, then you will get the additional information. This information will be displayed in the quick info line.

PIC

Figure 12.56: Quick info

12.10 Calculation Results

All results, such as the transverse contact ratio, overlap ratio and total contact ratio (safety foot root and flank for the calculation of the load capacity), will be calculated during every input and will be displayed in the result panel. A recalculation occurs after every data input. Any changes that are made to the user interface take effect immediately.

PIC

Figure 12.57: Calculation results

In case a minimum safety is not fulfilled, the result will be marked red. Press the Enter key or move to the next input field to complete the input. Alternatively, use the Tab key to jump from field to field or click the ‘Calculate’ button after every input. Your entries will be also confirmed and the calculation results will displayed automatically.

12.11 Documentation: Calculation Report

The ‘Report’ button enables you to generate a calculation report.

PIC

Figure 12.58: Button ‘Report’

The calculation report contains a table of contents. You can navigate through the report via the table of contents that provides links to the input values, results and figures. The report is available in HTML and PDF format. Calculation reports, saved in HTML format, can be opened in a web browser or in Word for Windows.

PIC

Figure 12.59: Calculation report

You may also print or save the calculation report:

12.12 How to Save the Calculation

When the calculation is finished, it is easy to save the calculation. You can save your calculation either to the eAssistant server or to your computer. Click on the button ‘Save’.

PIC

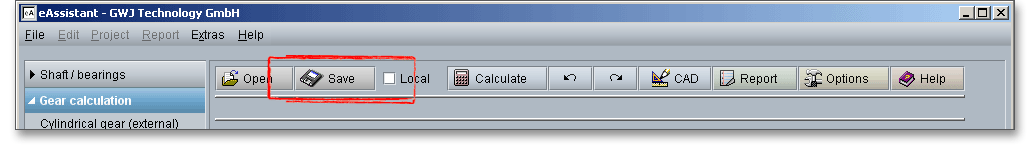

Figure 12.60: Button ‘Save’

Before you can save the calculation to your computer, you need to activate the checkbox ‘Local’ in the calculation module. A standard Windows dialog for saving files will appear. Now you will be able to save the calculation to your computer.

PIC

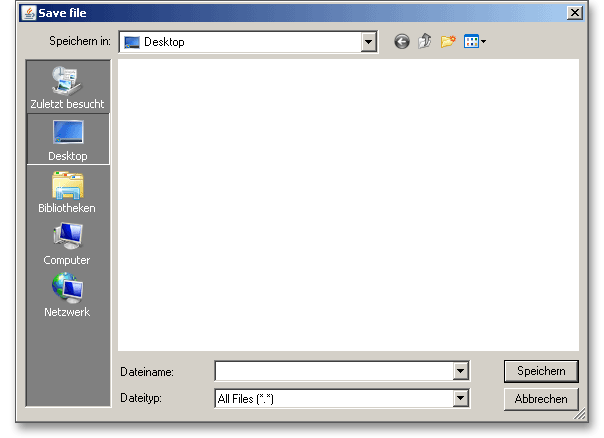

Figure 12.61: Windows dialog for saving the file

In case you do not activate the option in order to save your files locally, then a new window is opened and you can save the calculation to the eAssistant server. Please enter a name into the input field ‘Filename’ and click on the button ‘Save’.

PIC

Figure 12.62: Save the calculation

12.13 The Button ‘Redo’ and ‘Undo’

The ‘Undo’ button allows you to reset your inputs to an older state. The ‘Redo’ button reverses the undo.

PIC

Figure 12.63: ‘Redo’ and ‘Undo’ buttons

12.14 The Button ‘CAD’

The top menu bar of the eAssistant software provides the button ‘CAD’.

PIC

Figure 12.64: ‘CAD’ button

The eAssistant plugin for various CAD systems (e.g., SOLIDWORKS, Solid Edge or Autodesk Inventor) enables you to combine calculation and design very easily. On the basis of the eAssistant calculation, you can create bevel gears as a 3D part within seconds.

12.14.1 STEP/IGES-Format

Using this function allows to create the geometry of straight and helical bevel gears as 3D CAD models in STEP or IGES format. STEP as well as IGES are two standardised neutral file formats for CAD models. Almost every 3D CAD system can import STEP files.

PIC

Figure 12.65: STEP format

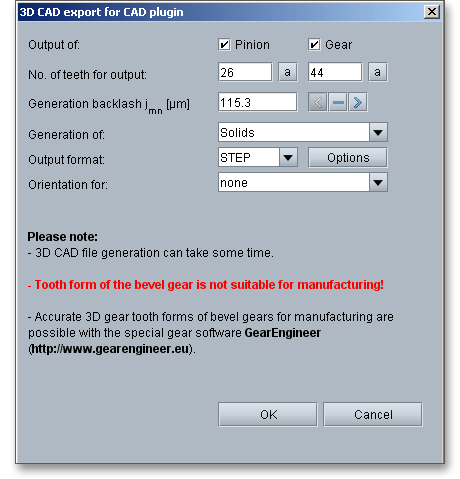

The settings menu for the STEP and IGES output has a few different functions and allows to adjust the export options as needed. The geometry can be generated as a solid model with one or all teeth or as a surface model of the tooth space geometry. When exporting to a CAD system, you can also set the level of accuracy to a desired value.

PIC

Figure 12.66: Inputs for STEP output

12.14.2 eAssistant CAD Plugin

The eAssistant plugin for various CAD systems (e.g., SOLIDWORKS, Solid Edge, Autodesk Inventor) enables you to combine calculation and design very easily and fast. Based on your eAssistant calculation, you can generate straight and helical gears as a 3D part within seconds. A single menu pick in the eAssistant software transfers the eAssistant calculation data to the CAD system. Based on these parameters, the automatic creation of a 3D parametric model starts in the CAD system. Allowances, addendum chamfer, profile shift are taken into consideration.

PIC

Figure 12.67: Output CAD plugin

The CAD model stores all features and dimensions as design parameters. The eAssistant calculation is linked and associated to the part and can be opened at any time throughout the entire design phase. This is also possible if one part contains different calculations. Click the button ‘CAD’ and select the CAD plugin. Open the CAD system and start the generation by clicking the integrated button ‘eAssistant’.

Please note: First you need to download and install the right CAD plugin for your CAD system. The plugin is available on our web site www.eAssistant.eu. After installation, an integrated button called ‘eAssistant’ appears in the CAD system.

The eAssistant CAD plugin also supports an automatic creation of 2D detail drawings for manufacturing. With just one click, the design table with all manufacturing details can be placed on the drawing. There is no need to manually add all design table parameters to the drawing.

Please note: For further information, please visit our web site www.eAssistant.eu or read the CAD plugin manual.

12.15 The Button ‘Options’

Click on the ‘Options’ button in the menu bar at the top to change some general settings (e.g., the number of decimal places for the report).

PIC

Figure 12.68: Button ‘Options’

Here you can change now the following settings:

PIC

Figure 12.69: Button ‘Options’
