This workshop focuses on shafts and bearings, using eAssistant and TBK to illustrate key concepts and principles. Participants will explore general settings, configuration options, and calculation methods, all through numerous practical examples. No prior specialized knowledge is required.
The course is ideal for young professionals, experienced engineers, designers, and technicians seeking practical, hands-on insights.
Main Topics
- Shafts
- Material selection
- Approximate shaft dimensioning
- Deflection, forces, moments and stresses
- Bearing forces
- Shaft strength
- Notch effects

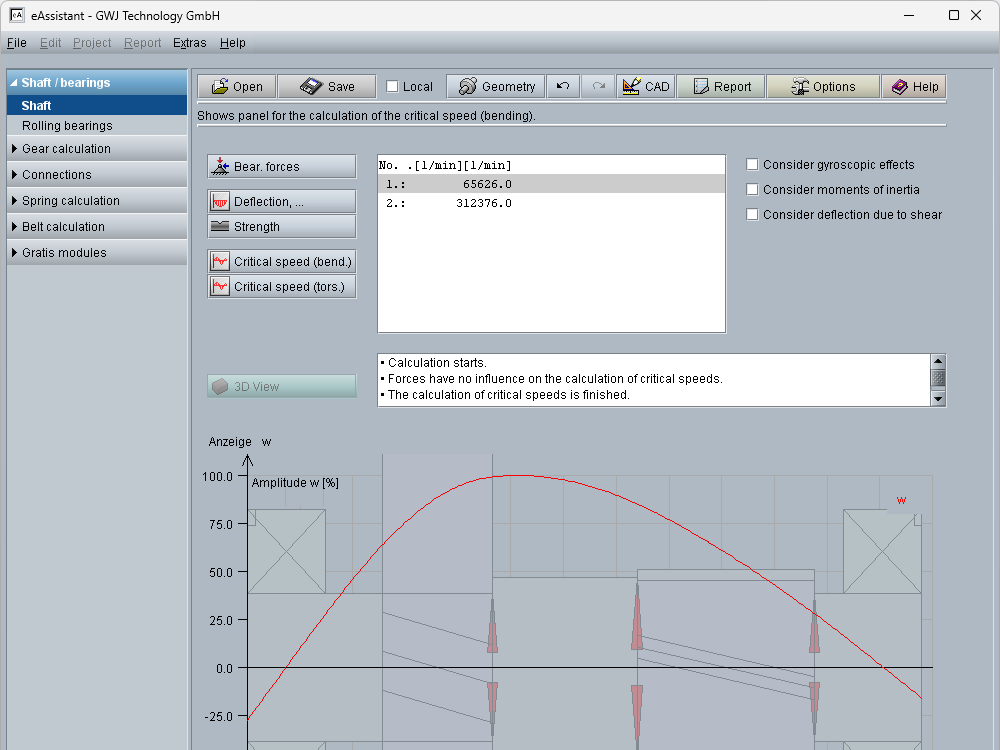

- Critical speeds (torsion and bending)...
- Rolling Bearings
- Bearing types
- Bearing clearance, bearing play
- Inner reaction forces

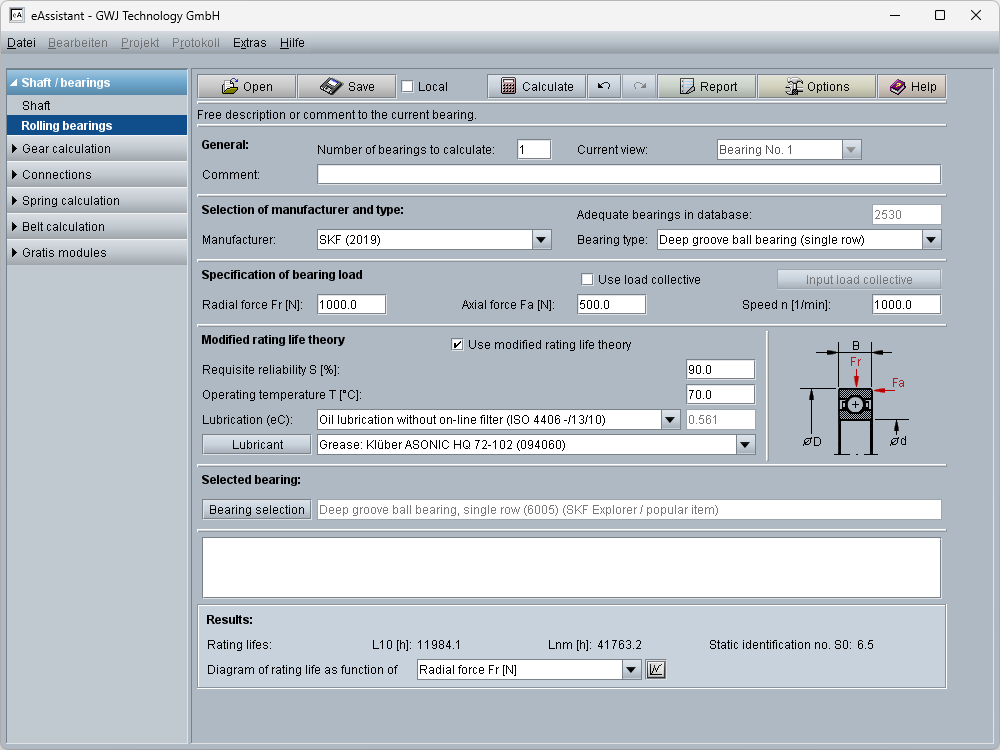

- Rolling bearing life: Calculation of basic and modified rating life according to DIN ISO 281, calculation of basic and modified reference rating life according to DIN 26281 (ISO/TS 16281)
- Lubrication…
