This workshop focuses on the SystemManager software and provides all the essential information needed to get started, including basic handling and an overview of the software’s capabilities. No prior knowledge is required. After covering the theoretical fundamentals, participants will have the opportunity to explore the software in depth through practical examples.
The seminar is designed for young professionals, experienced engineers, designers, and technicians who want to gain hands-on experience with SystemManager.
Main Topics
- Introduction, configuration, general settings
- Configuration of result display and graphics
- Specifications for system calculation: Weight, eigenfrequencies, housing material, temperature, necessary rating life
- Coordinate system

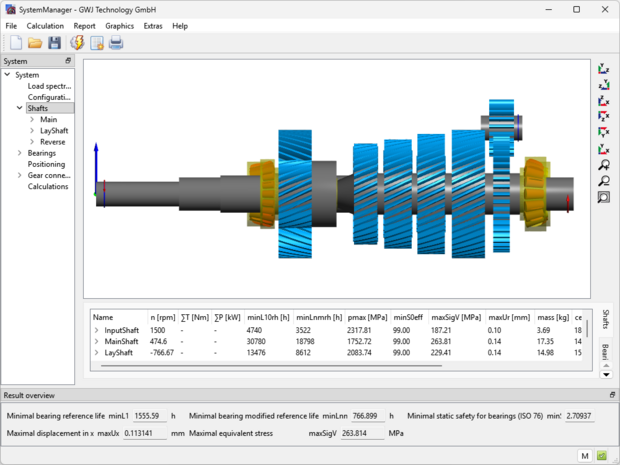

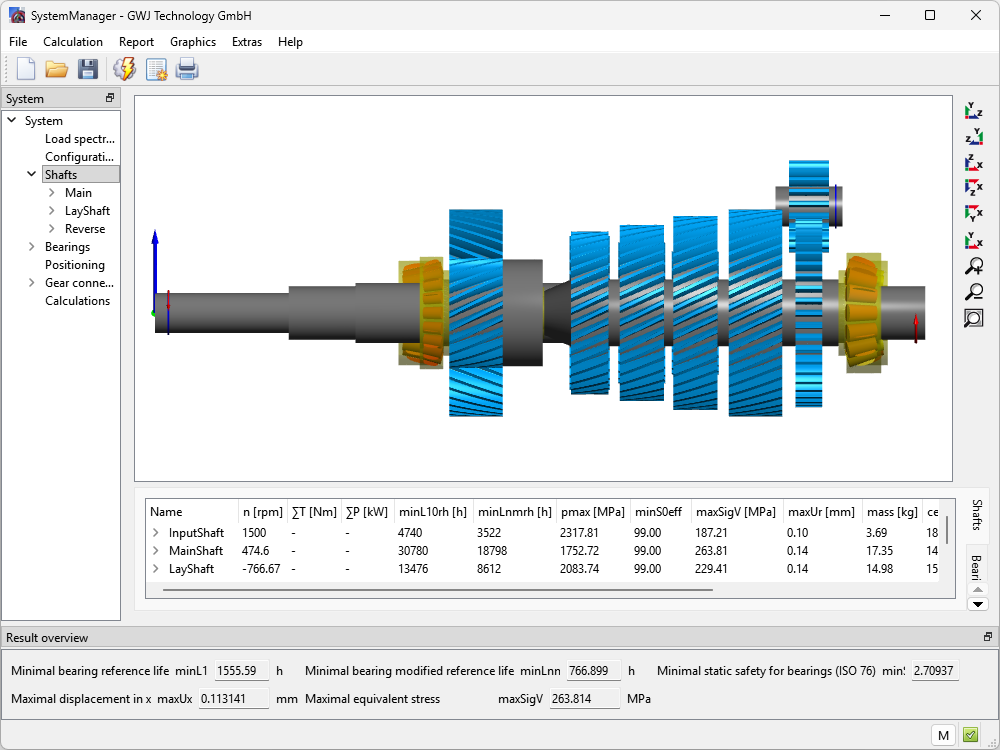

- Tree structure, group definition, moving and copying of shafts
- Shaft calculation: Fatigue strength, shear deformation, load spectra, lubrication…
- Definition of shafts: Input of geometry, import of shafts, loads, bearings/boundary conditions, non-linear bearing stiffness…

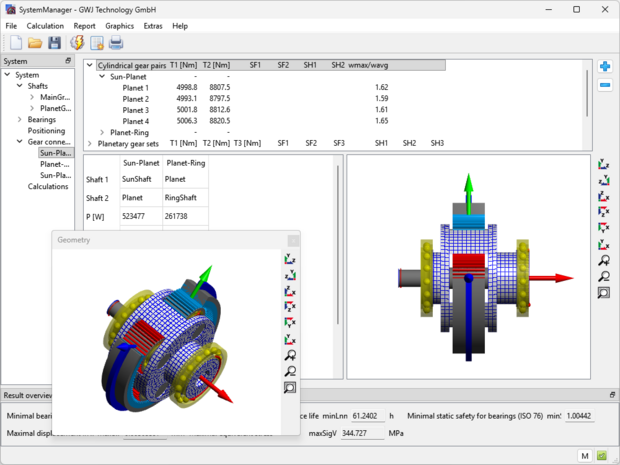

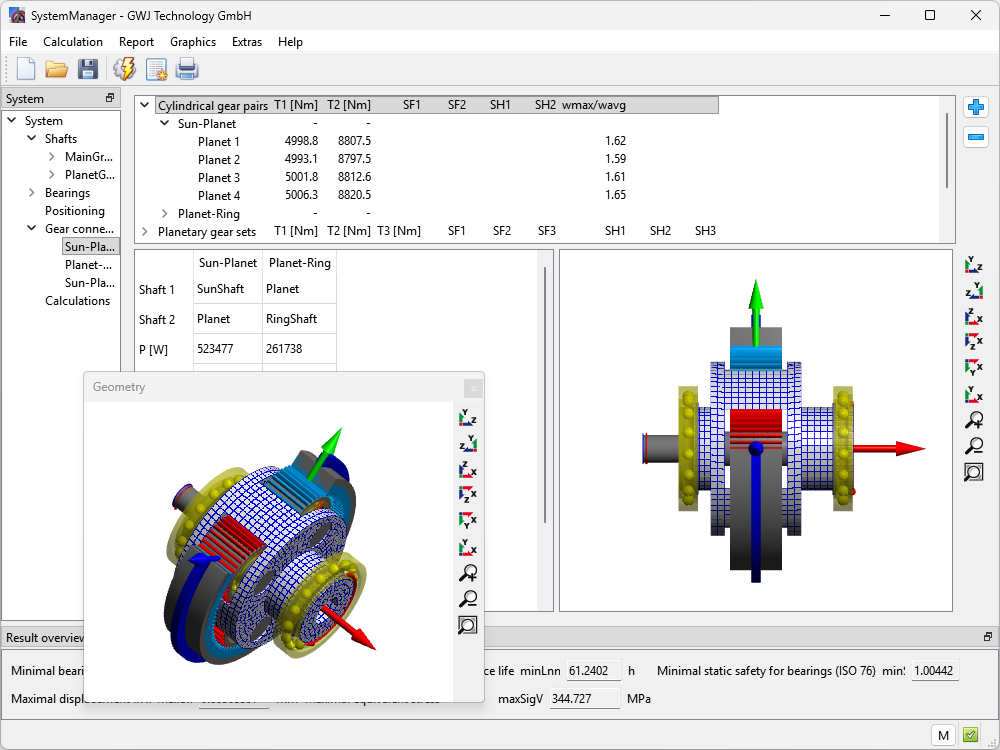

- Gear connections
- Positioning possibilities
- Power flow, deformations, eigenfrequencies
- Output of calculation reports and result graphics
- Draft design of cylindrical gear pairs
- Distribution of transmission ratio for cylindrical gears
- Influence of temperatures on the calculation

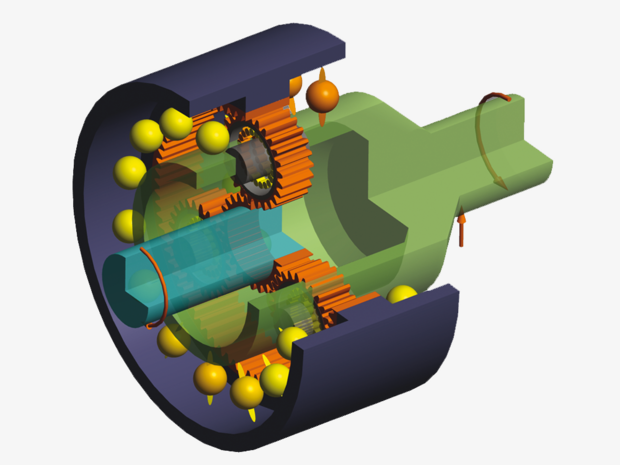

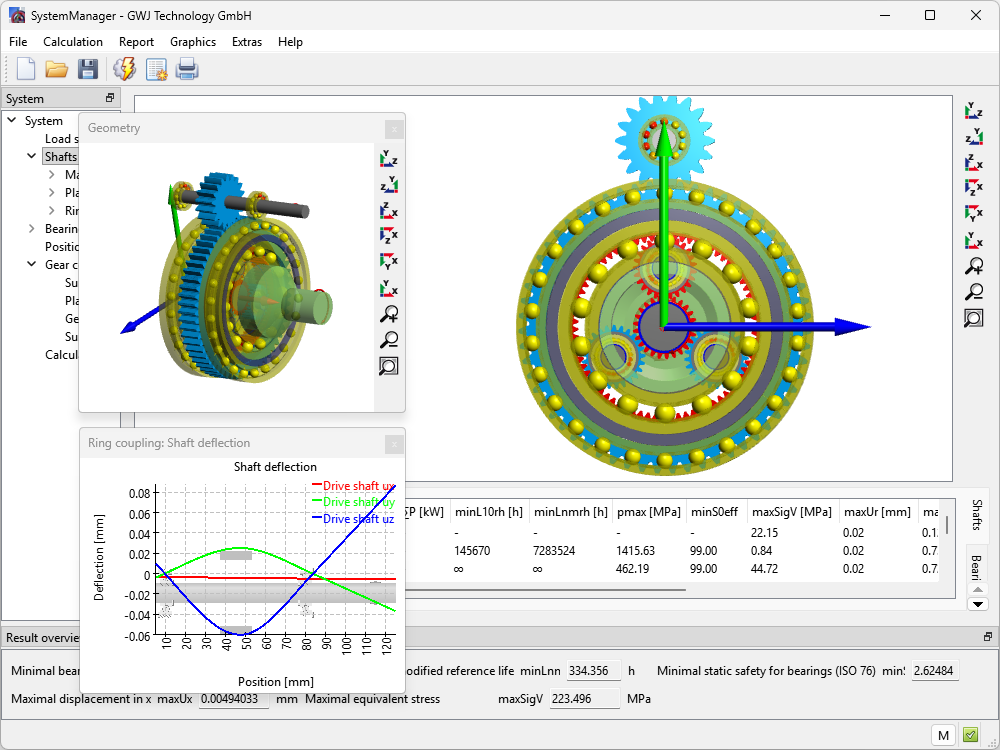

- Configuration of planetary gear stages and bevel gear stages
- Calculation with load spectra
- Flank and parameter variations

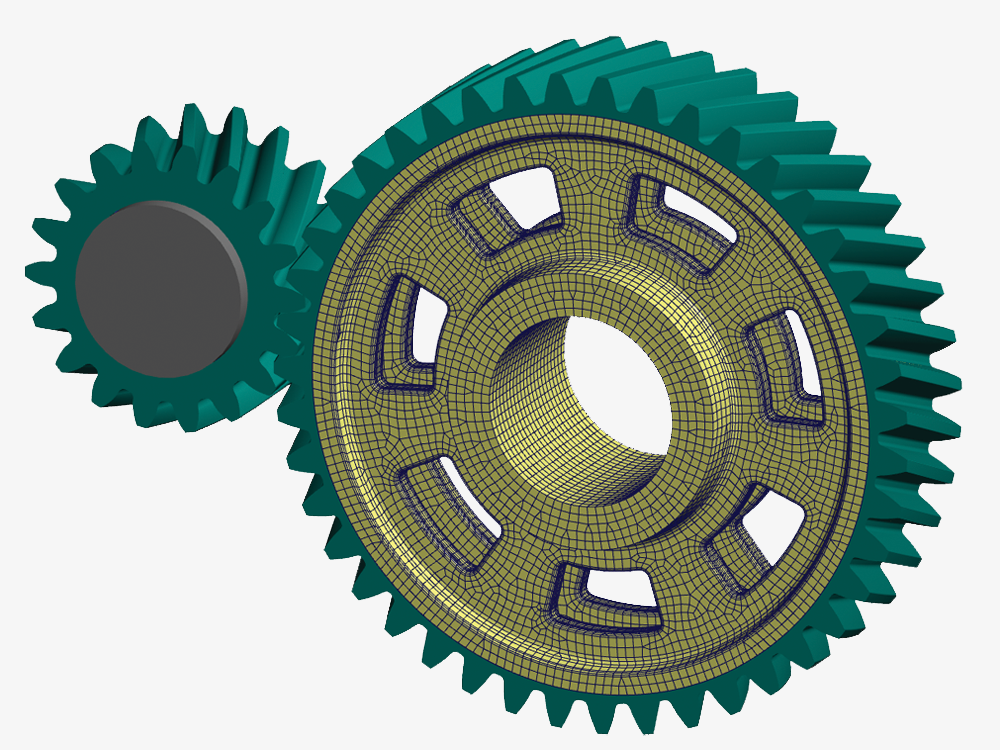

- 3D elastic parts…
