This workshop provides hands-on training in the design, recalculation, and optimisation of shaft-hub connections, including interference fits, parallel keys, involute splines, and clamping connections, using the powerful eAssistant/TBK software. Practical tips, real-world examples, and guided exercises help participants quickly grasp the underlying theory and apply it with confidence.
Designed for young professionals and seasoned engineers alike, this seminar is ideal for engineers, designers, and technicians looking to enhance their efficiency and accuracy in everyday design work.
Main Topics

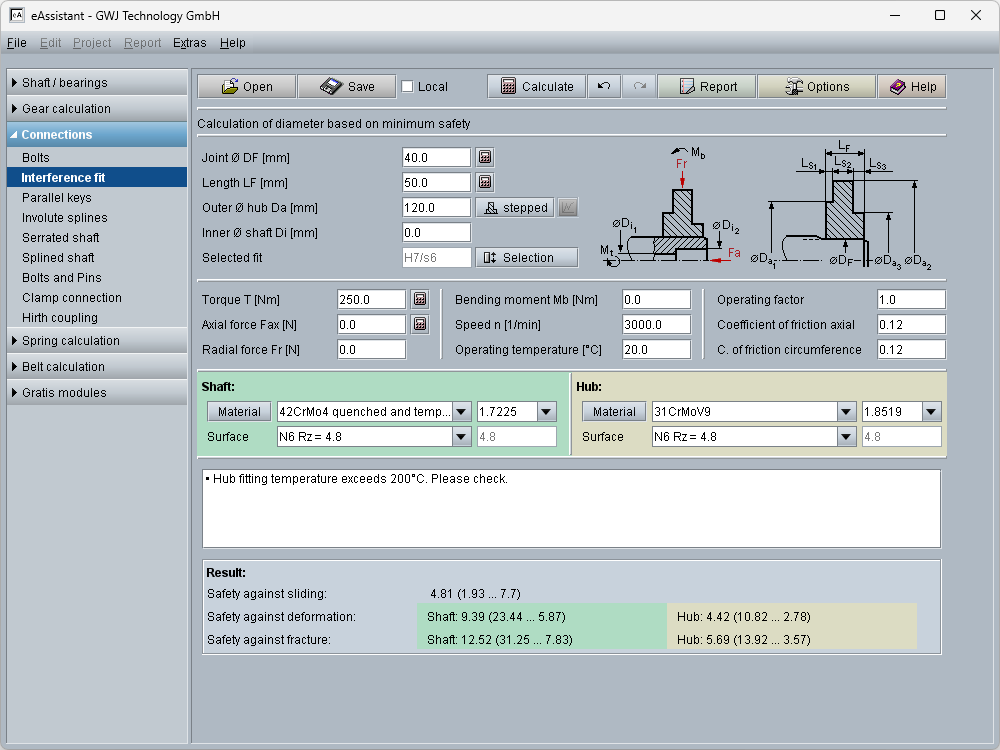

- Interference fits: Dimensions, tolerance system, fits, stresses, gaping joint, stepped hubs, fretting corrosion, shrink fits, force fits

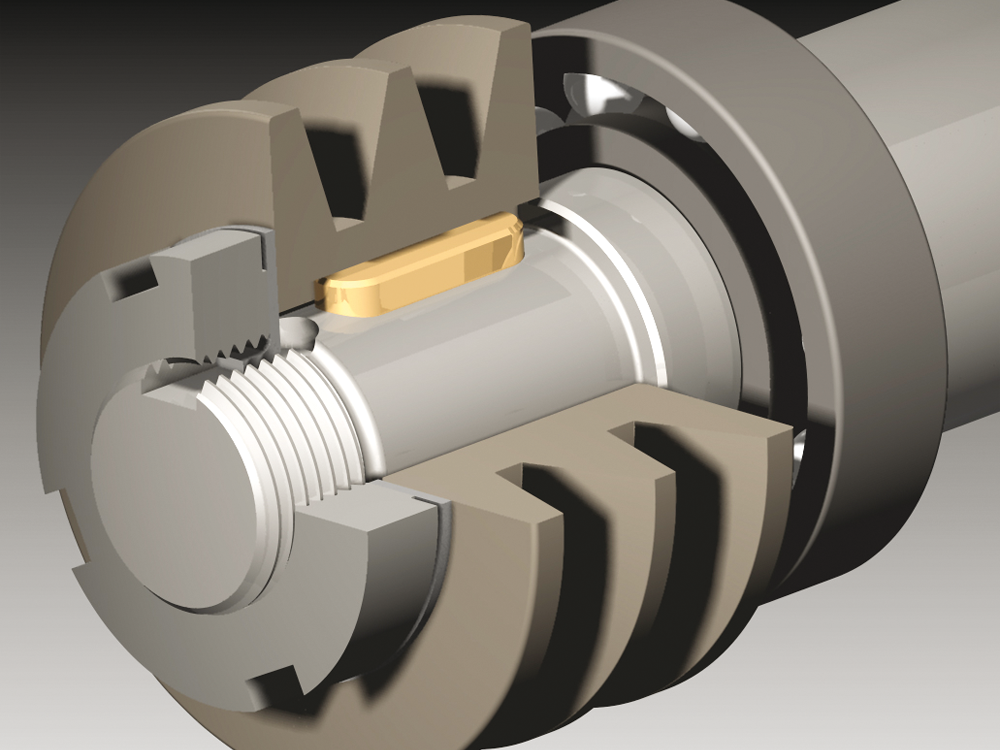

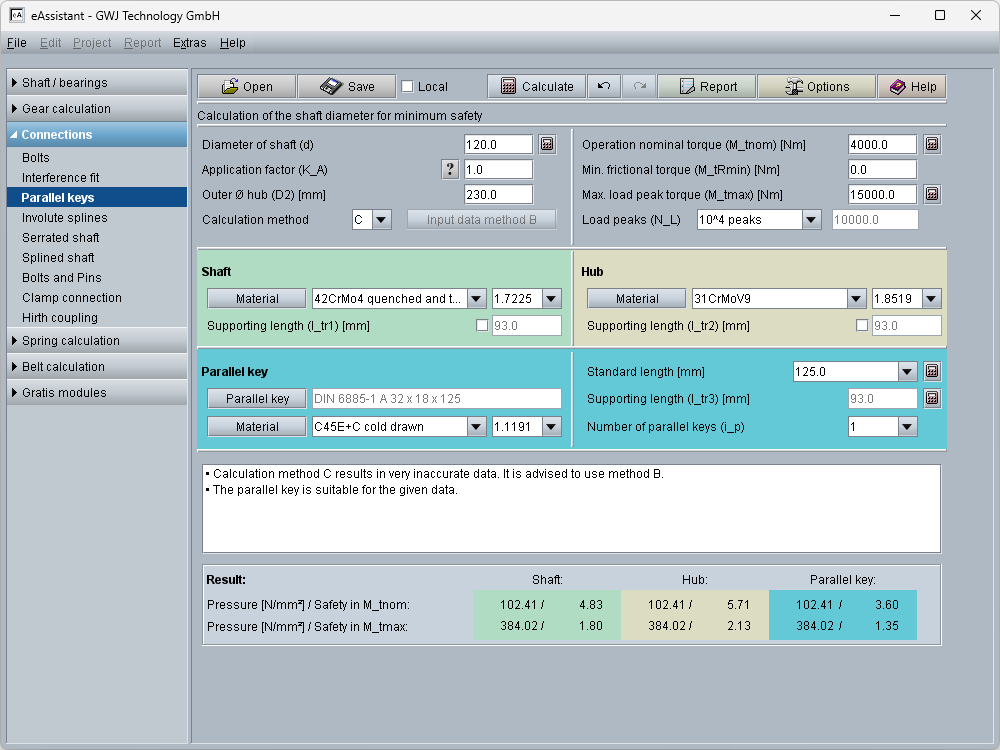

- Parallel keys: Field of application, special features, geometry, surface pressure, load direction changing factor, load peak frequency, support factor, additional information on Method C
- Splined shaft connections

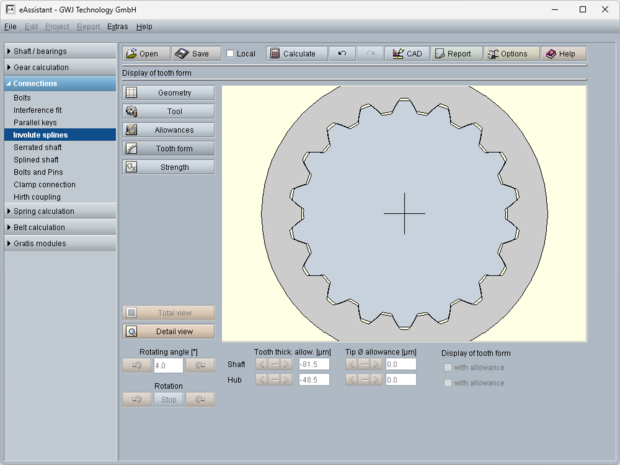

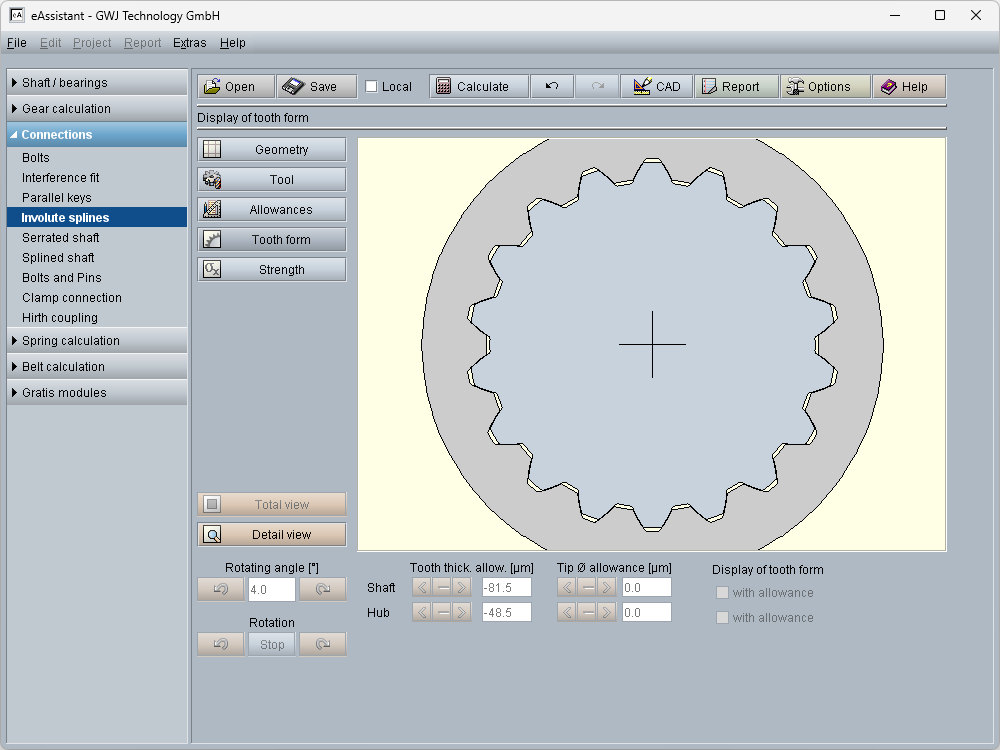

- Involute splines according to DIN 5480, DIN 5482, ISO 4156, ANSI B92.2M, ANSI B92.1 and similar: Geometry, dimensioning, individual definition of geometry, tool standard basic rack profiles according to DIN 5480 for broaching, hobbing, shaping, cold rolling as well as for diameter centering, tool types hob or gear shaper cutter, strength calculation
- Serrated shaft connections
- Notch stresses of different shaft-hub connections
- Clamp connections: Fits, separated hubs, split hubs

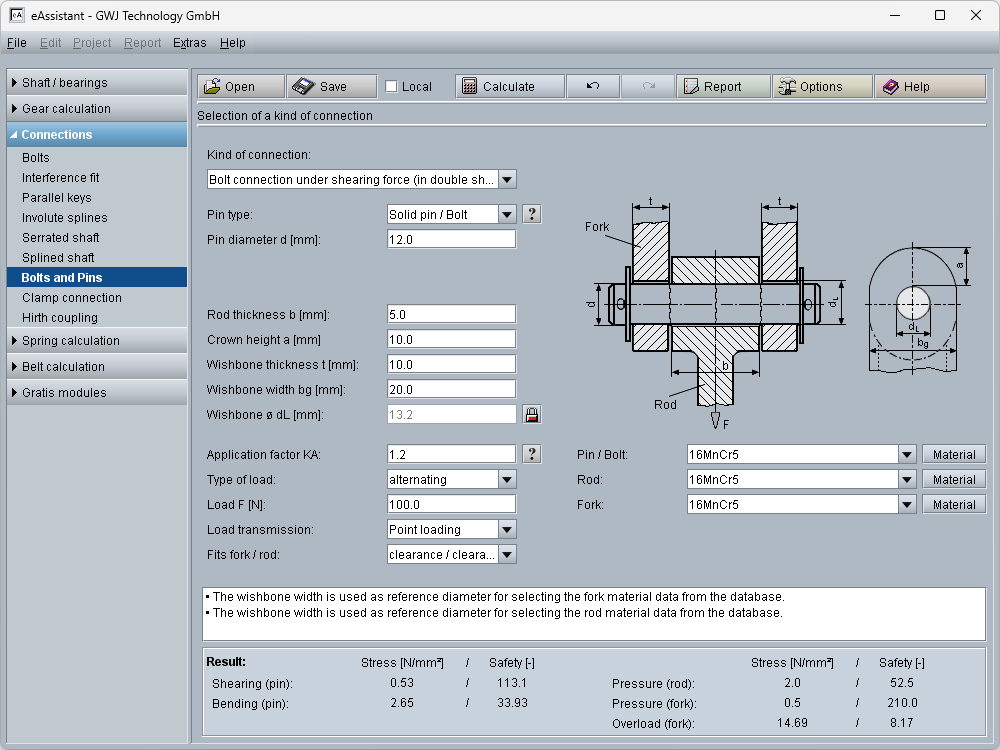

- Bolts and pins: Functions, longitudinal pins, guide pins, cross pins, grooved pins, dowel pins, grooved taper pins, parallel grooved pins, bolt connections…
