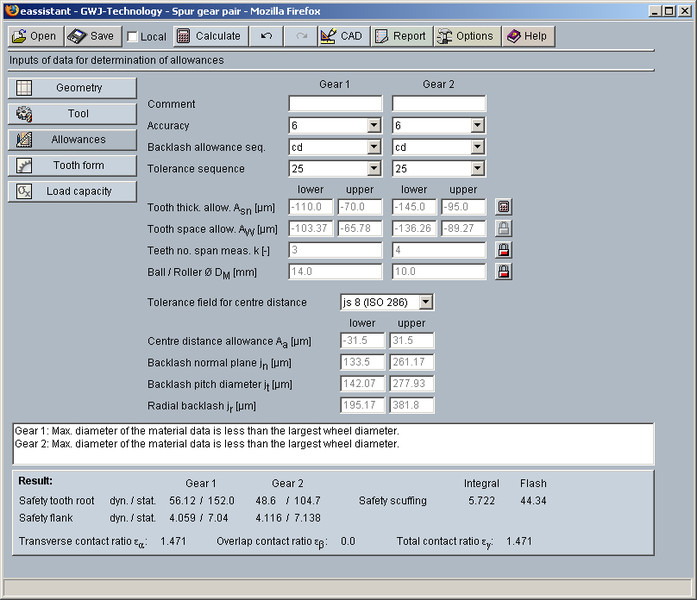

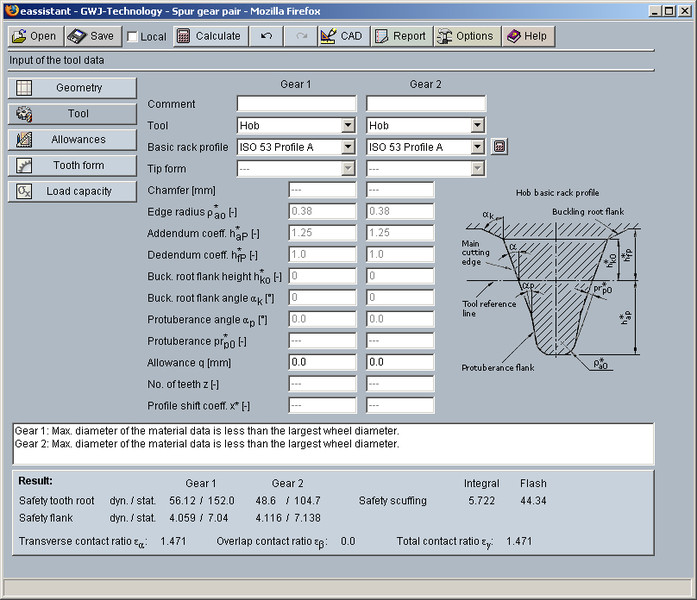

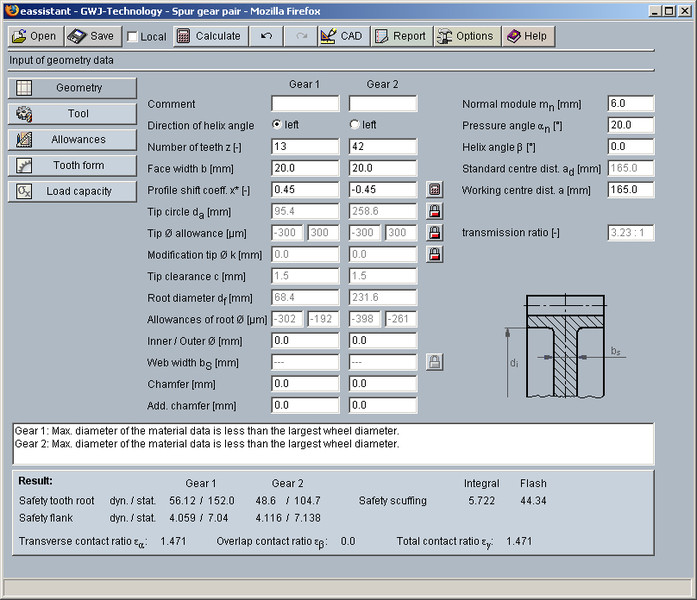

This gear calculation module allows the simple and fast calculation of the geometry of cylindrical gear pairs according to DIN 3960, DIN 3961, DIN 3964, DIN 3967, DIN 3977 and DIN 868. Profile shift modification, addendum chamfer and allowances will be taken into consideration. Allowances of tooth thickness and centre distance can be comfortably selected from the database. For the profile shift modification factor, an optimization function for balanced specific sliding is available. For the calculation, the working centre distance can be specified or can be calculated from given profile shift coefficients. Different standardised basic rack profiles for tools according to ISO 53, DIN 867 and DIN 3972 can be selected or defined individually for the calculation. Full-depth teeth and stub tooth gears are possible. Furthermore, the test dimensions will be calculated. For these, the required number of the teeth for span measurement and the diameter of ball or pin will be determined automatically by the program or can be entered by the user. In addition, a backward calculation of the tooth thickness allowances from given test dimensions is also possible.

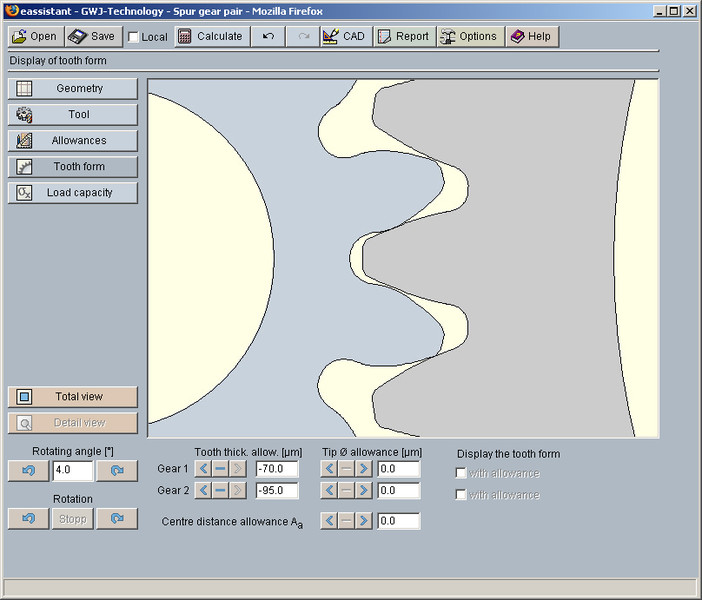

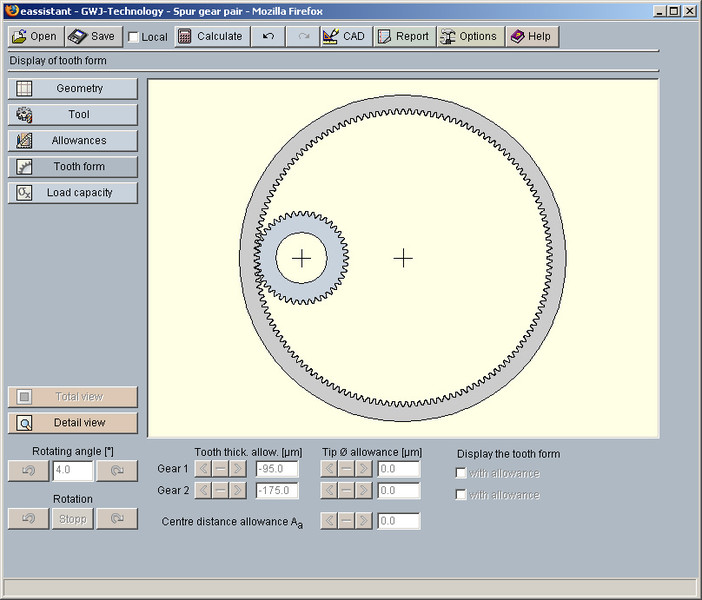

A special highlight of the calculation module is the display of the accurate gear tooth form with animation/simulation of the tooth mesh. For this representation, the lower, middle and upper allowances for the tooth thickness, the tip circle diameters and centre distance can be selected. Additional, the program gives hints and warnings (e.g., for possible meshing interferences). A check for meshing interferences occurs in the background based on the accurate gear tooth form.

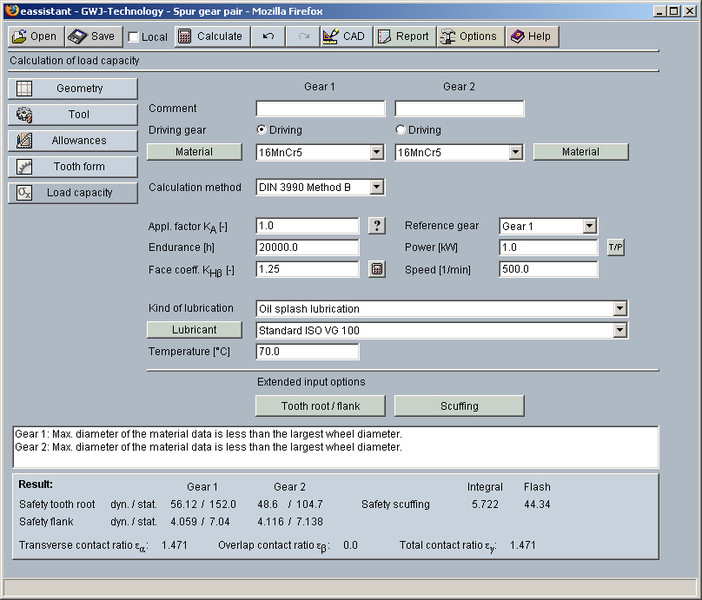

In addition to the geometry calculation, the load capacity according to DIN 3990 Method B is also available. Herewith the safeties for fatigue or limited life strength and static strength can be calculated. The calculation of surface durability (pitting), tooth bending strength and scuffing according the flash and integral temperature method is carried out. A diagram for the contact temperature over the length of the line of action is also available.
Alternatively, the load capacity calculation of the surface durability (pitting) and tooth bending strength according to ISO 6336 (2008) Method B is selectable. For the scuffing load capacity the ISO/TR 13989 is integrated.
There is a calculation of load spectra for cylindrical gears according to ISO 6336 Part 6. The determination is based on the Palmgren-Miner rule and the load-dependent K-factors are calculated for each torque class. The safeties are determined by way of iteration until the sum of damage parts is obtained. This method, demanded by the wind energy industry, is very accurate.
The materials and the lubricant can be comfortably selected from the database. Furthermore, other effects (grinding notches, mode of operation, etc.) can be taken into consideration.

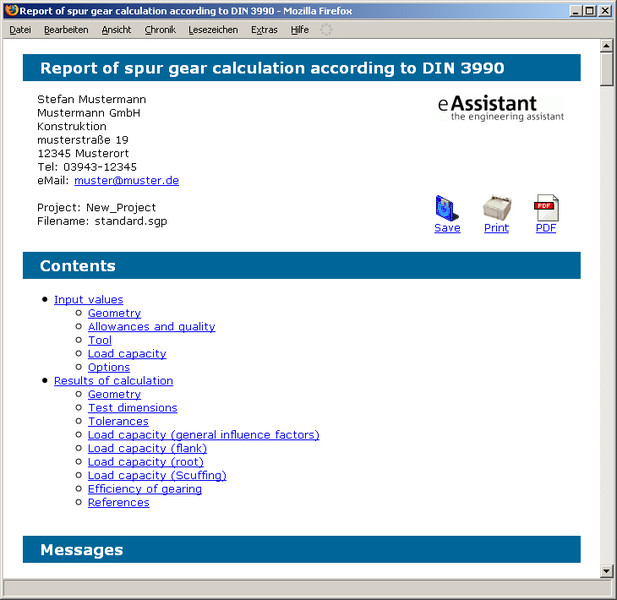

The redo/undo function and the calculation report in HTML and PDF are also available in this module.
