Serrated shaft connections according to Niemann

Features

  • Strength calculation based on Niemann for serrated shafts according to DIN 5481
  • Standardized geometry selectable from the database
  • Profile search function for fast selection
  • Hub and load input and output geometry with load factor according to DIN 6892 will be taken into consideration
  • Calculation functions for design advice
  • Load peaks and alternating torque
  • Own input of serrated shafts geometry is possible
  • Determination of permissible pressures from material parameters
  • Detailed calculation report in HTML and PDF format

Description

The calculation module allows to carry out a strength calculation according to Niemann for shaft-hub joints with serrated shafts according to DIN 5481. The geometry can be comfortably selected from the database or identified with the profile search function. In addition, the possibility for an own input of serrated shaft geometry is also available.

The allowed pressures will be calculated on the base of the material properties. So, it is possible to use special metal materials. Available materials can be selected very easily from the integrated material database. For different load in and output, the load factor according to DIN 6892 will be calculated on the base of the given geometry. Additional load peaks and alternating torque can be defined for the calculation.

The user will be optimally supported through calculation functions for the operation nominal torque, the maximum load peak torque or the supporting length.

In the result overview, the safeties and the pressures of the operation load and at the maximum load for the shaft and the hub will be displayed already during the input. After the calculation is finished, a calculation report can be generated for the documentation. This report includes the calculation method, the input values and detailed comprehensible results.

The calculation report is available in HTML and PDF format.

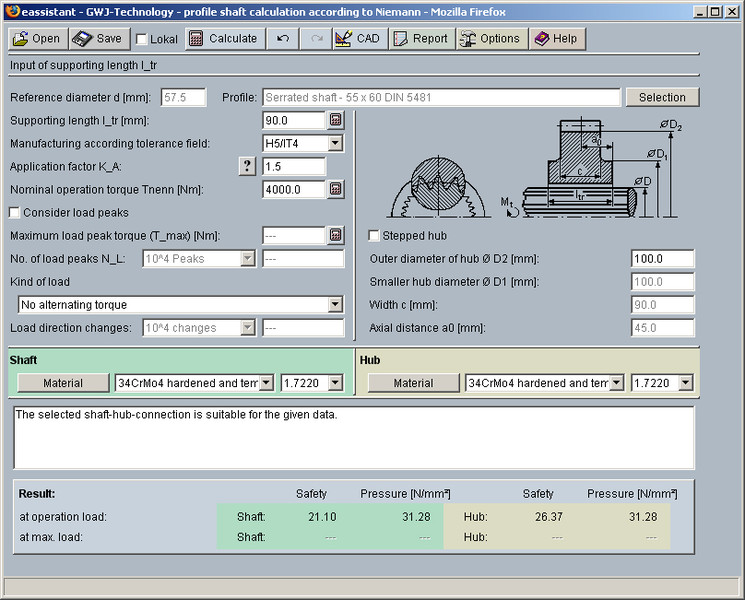

Serrated shaft connection according to Niemann

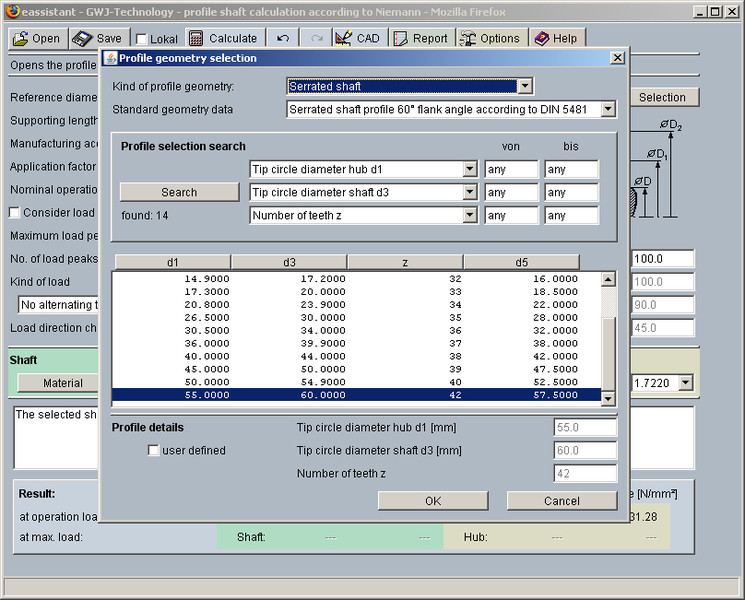

Selection of profile geometry

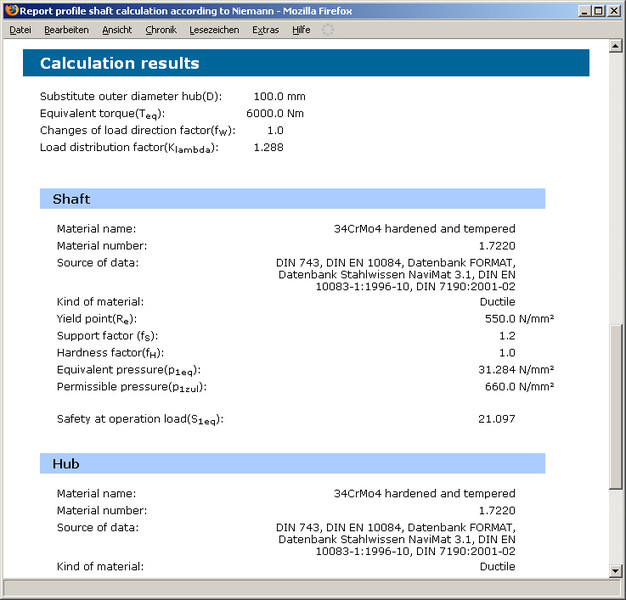

Calculation report

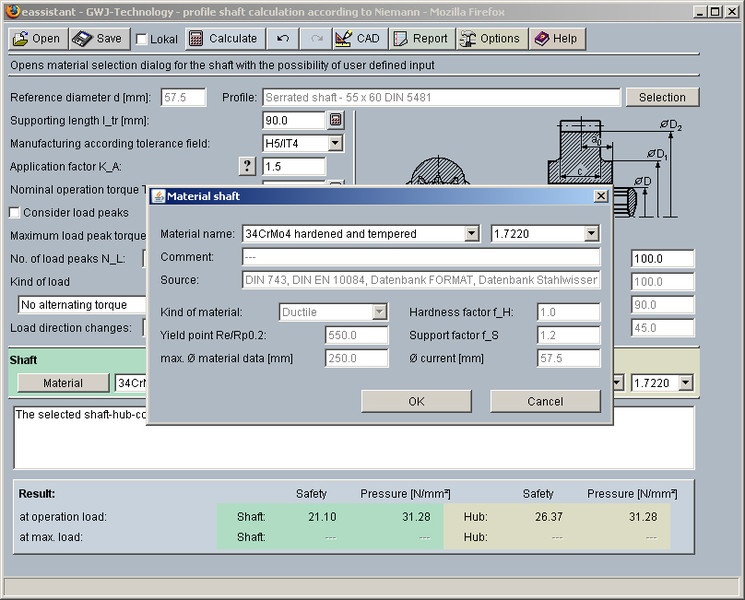

Selection of material
